Heavy Machinery Sale - Boring, Milling and Workshop Machinery from the Closure of TMG

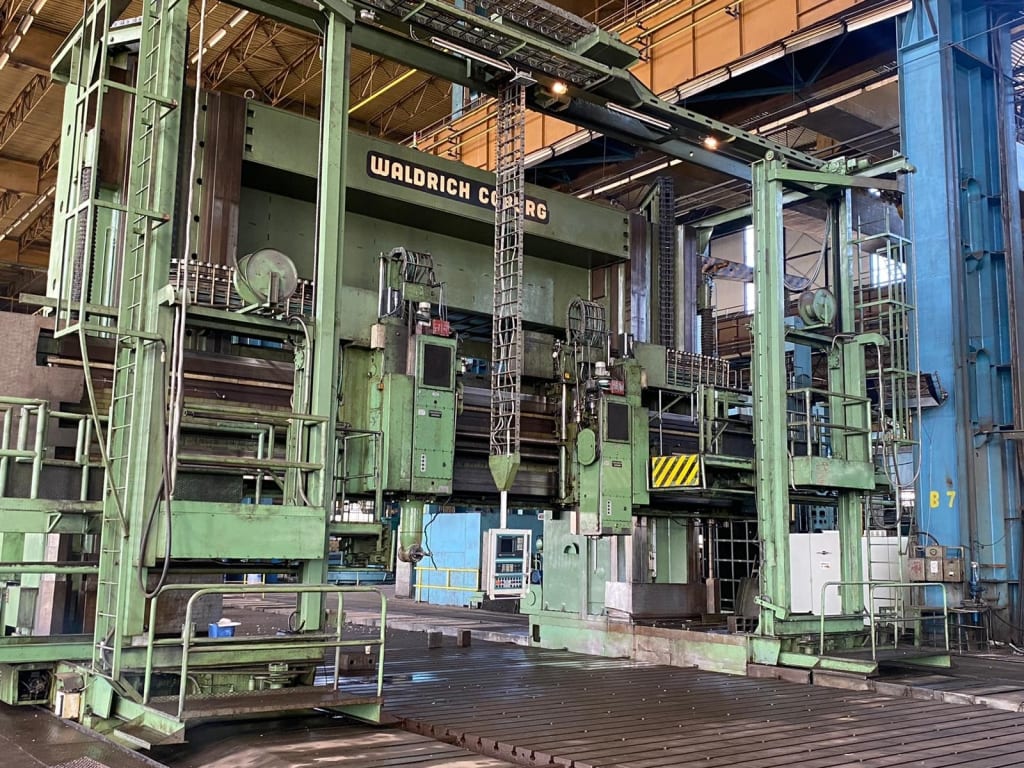

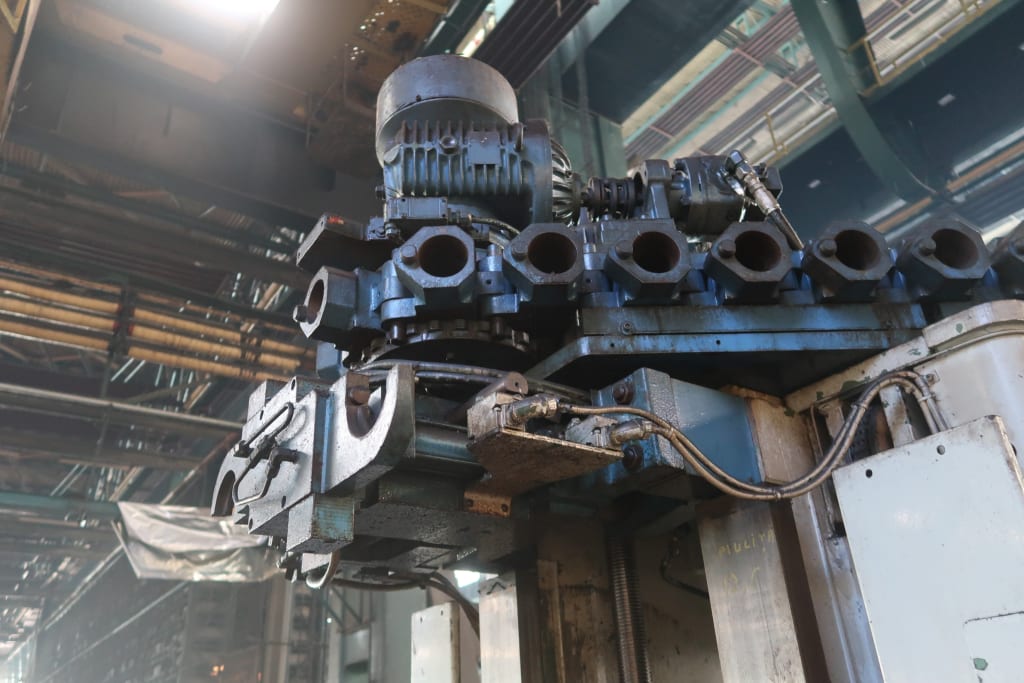

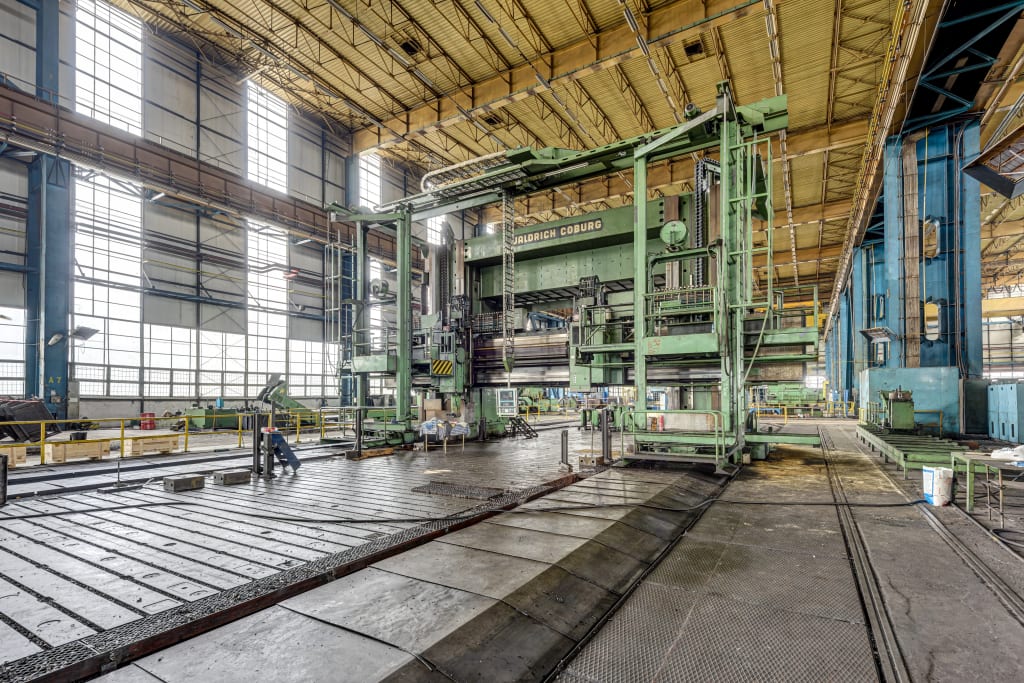

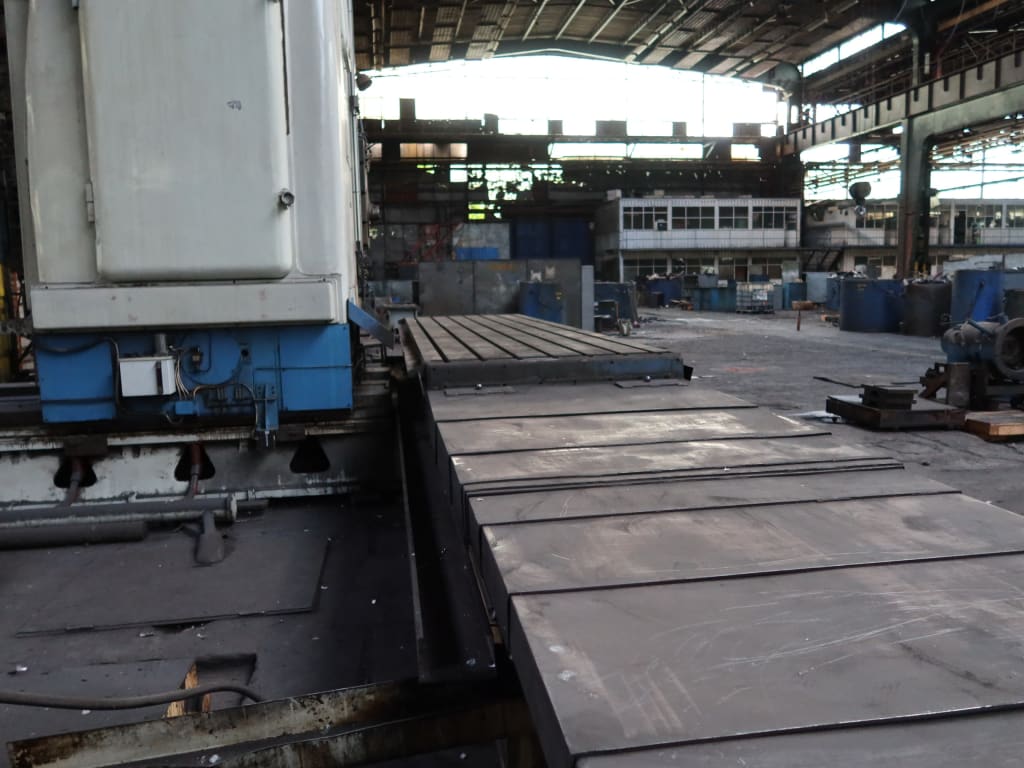

Operation System SIEMENS 840; Technical Specifications: Fixed table length 36,000 mm, Fixed table width 6,000 mm; Distance between columns with covers 6,900 mm, without covers 7,100 mm; Gantry travel 30,000 mm; Cross rail travel 3,100 mm; Milling heads (right and left) travel on cross rail 7,400 mm; Vertical travel of right and left rams 1,000 mm; Gantry work feeds 0–6,000 mm/min; Gantry rapid feed 10,000 mm/min; Milling heads (right and left) work feeds 0–3,000 mm/min; Milling heads (right and left) rapid feed 3,000 mm/min; Vertical rams (right and left) work feeds 0–2,000 mm/min; Vertical rams (right and left) rapid feed 2,000 mm/min; Cross rail fine positioning 0–750 mm/min; Cross rail rapid feed 1,000 mm/min; Fine positioning for work axes 5 mm/min; Main spindles (right and left) speed range on 3 steps 4–475 rpm; Taper of milling spindles ISO 60; Manual 12-head changing system with 8 sets of milling heads; Diameter of milling-spindle nose 221.44 mm; Fixed Table PMM GM600-30000 4,500 × 30,000 mm. NOTE: Upon seller approval, the winning bid for this lot shall include all costs associated with dismantling and loading onto the buyer’s vehicles. Packing list attached.

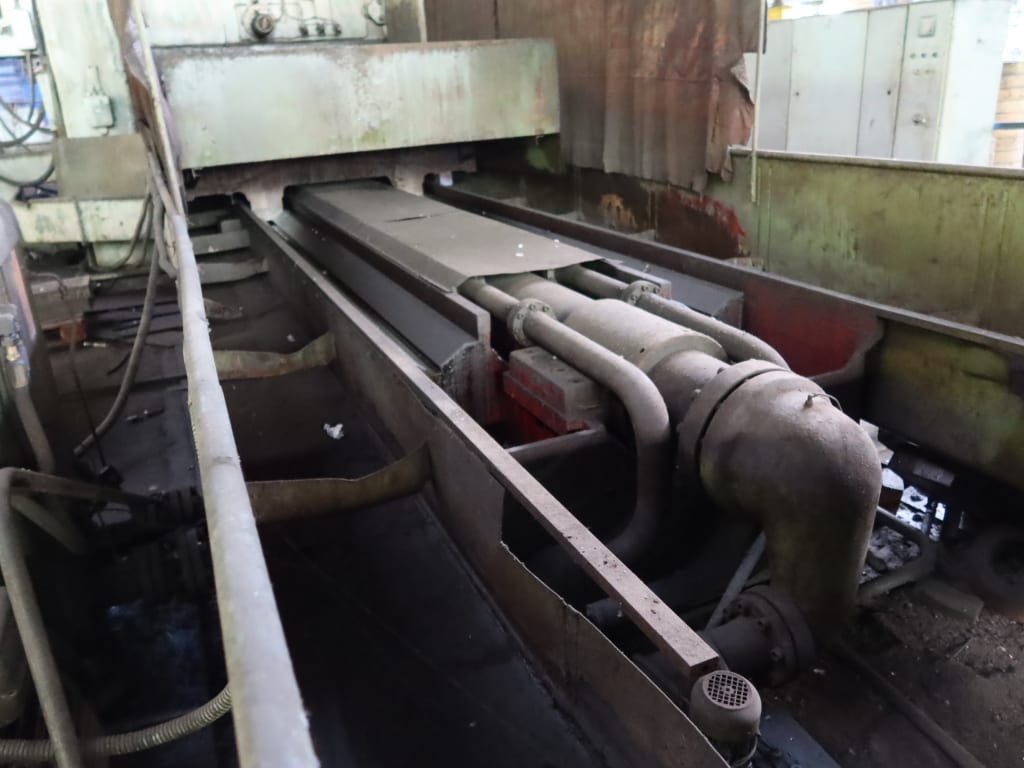

Mobile Table Dimension 2,000 x 9,000mm. Traverse Stroke 2,000mm (Cross Travel). Distance Between Columns 2,200 mm. One Reclining Head. Travel Head On The Crossrail = Approx. 3,500mm (Horizontal Travel). Wheel Dimensions: From 180 mm to 500 mm. Coolant system: Yes. Filtration System: Yes. Wheel Speed Range: From 1,100-3,200 rpm (Maximum 25 m/s).

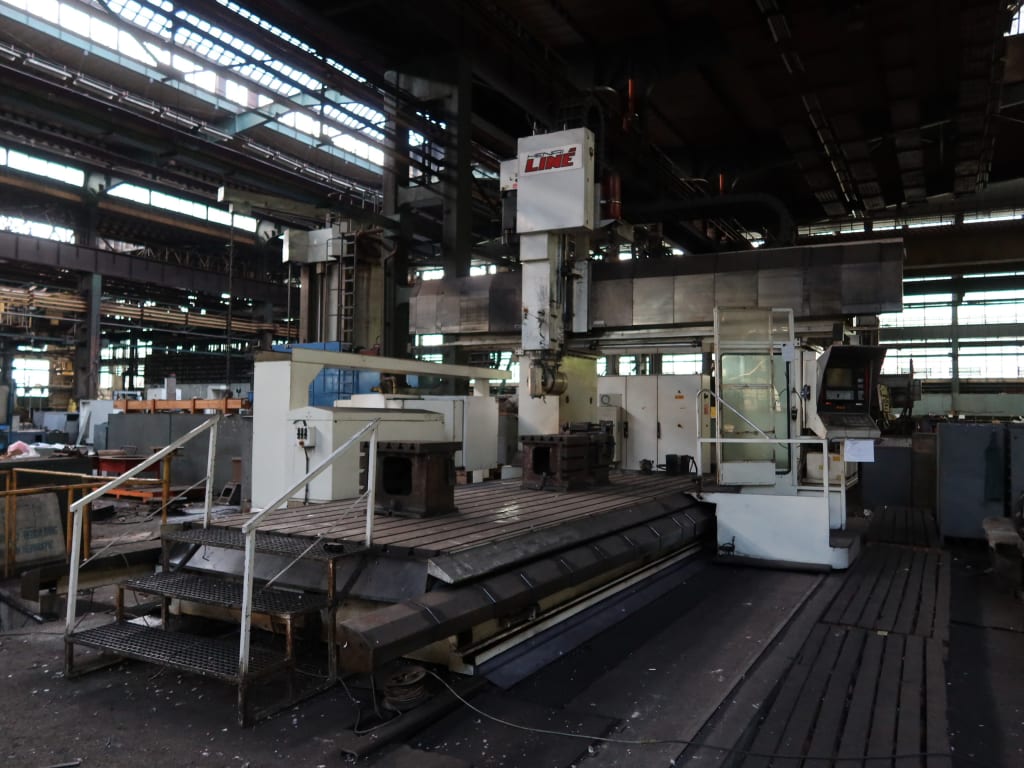

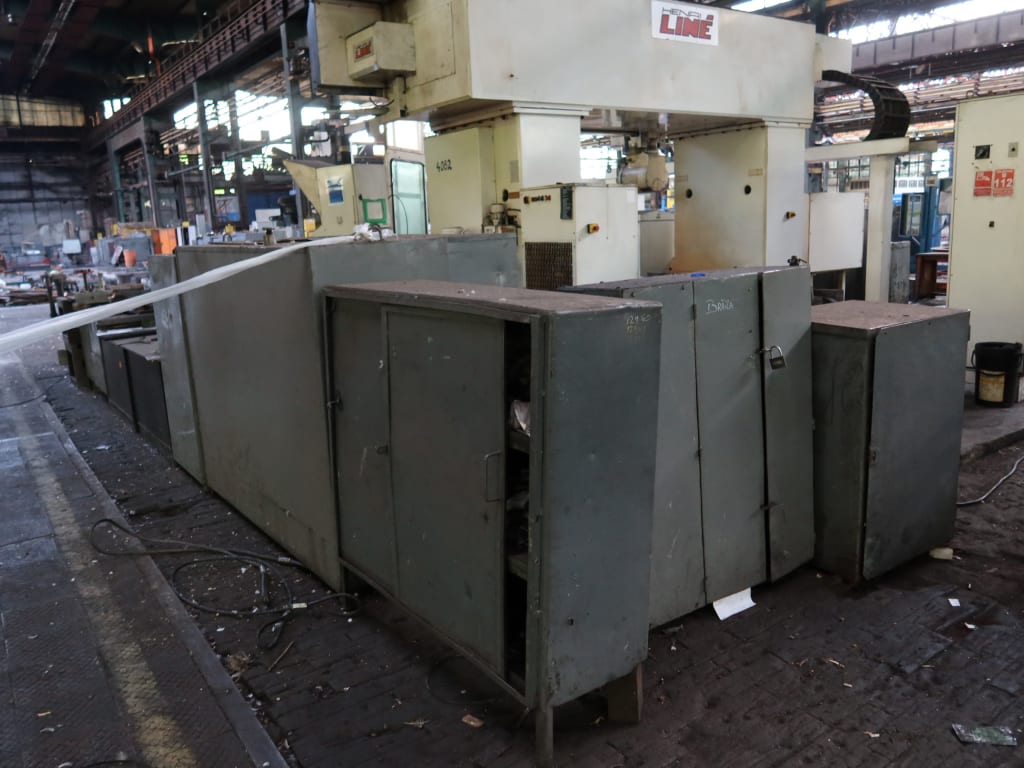

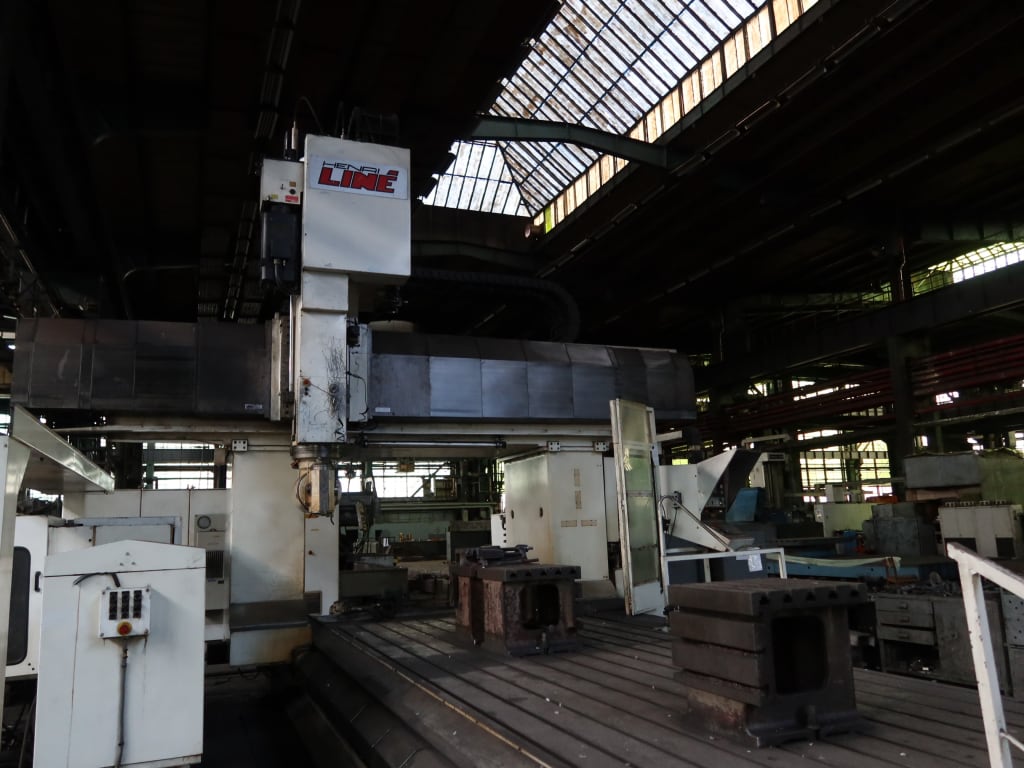

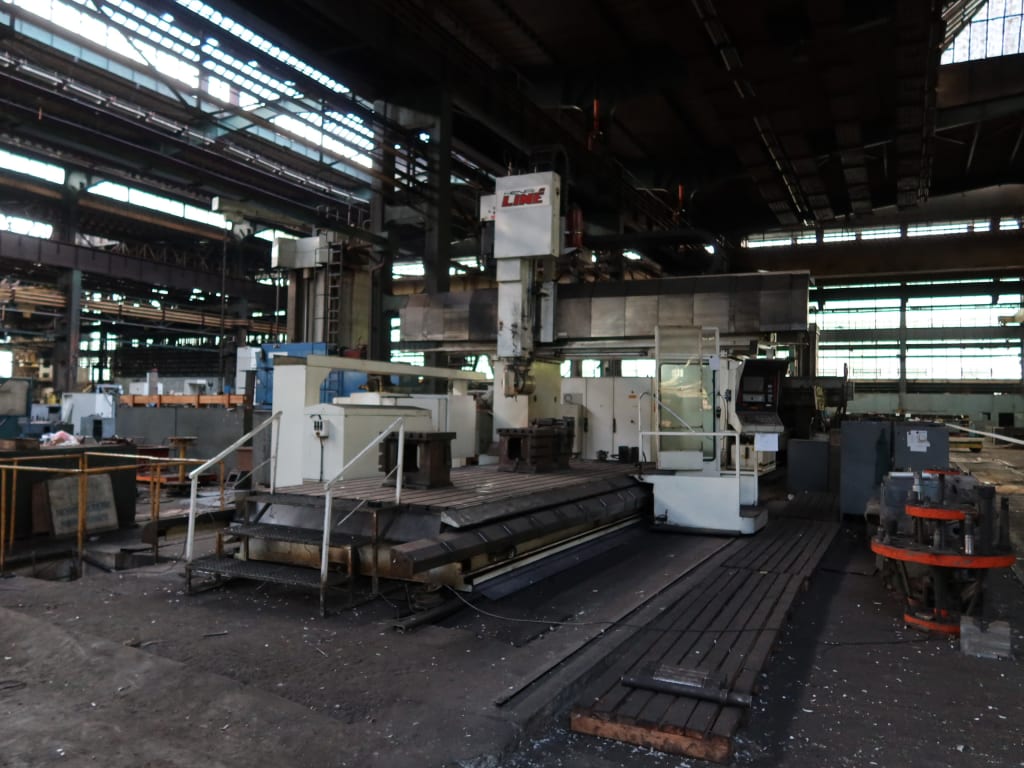

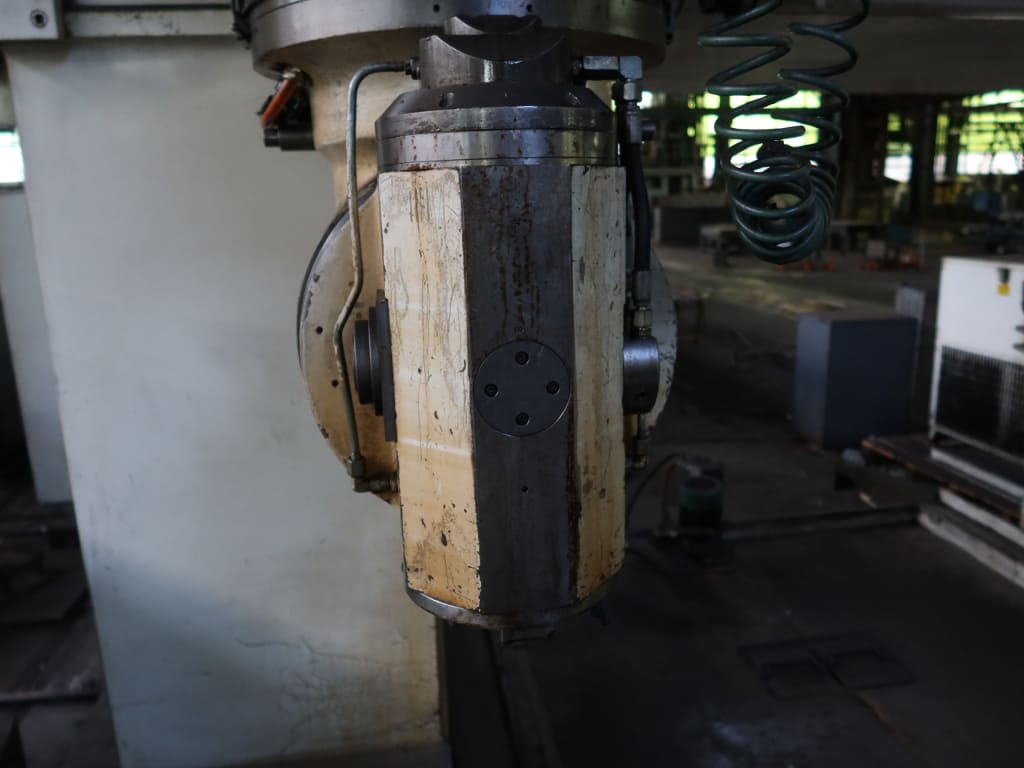

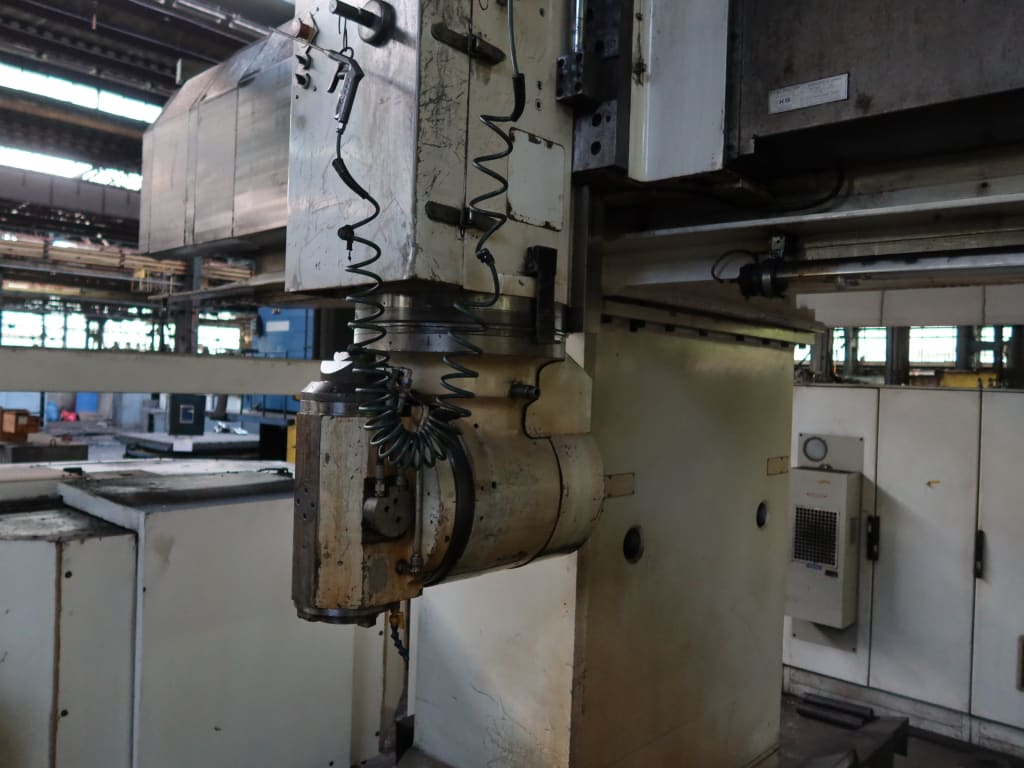

Main CNC Axes: 'X1+X2' (Gantry Axes Portal Travel) 6,000mm, 'Y' (Milling Head Horizontal Travel On Cross-Rail) 3,500mm, 'Z' (Milling Head Vertical RAM Travel) 1,000mm; CNC Accessory Axes (Universal Head): 'A' (Rotation Around The 'X' axis) Angular Movement -120 To 0 to +120° With 1° Increments, Lock With HIRTH; 'C' (Rotation Around The 'Z' Axis) Angular Movement 0–360° With 1° Step, Lock With HIRTH; Feed Range: 'X' 1–10,000 mm/min, 'Y' 1–10,000 mm/min, 'Z' 1–10,000 mm/min; Rapid Axes Feed: 'X' Max. 15,000 mm/min, 'Y' Max. 15,000 mm/min, 'Z' Max. 10,000 mm/min; Milling Spindle Speed Ranges: Range 1: 20–207 rpm Constant Torque / 208–897 rpm Constant Power; Range 2: 50–925 rpm Constant Torque / 926–4,000rpm Constant Power; Motor Milling Spindle (S1): SIEMENS 1PH6167-4NF49-Z, Nominal Speed 1,500 rpm, Max. Speed 6,500 rpm, 37 kW, 102 A, With SIMODRIVE 611A; Active Table Surface: 6,100 × 2,200 mm; Distance Between Columns: 2,550 mm; Distance Between Table & Cross-Rail: 1,650 mm; Milling Tool-Holder: Type ISO 50. Accessories Include Angular Universal Head (Angular Axes 'A' and 'C') & Direct Drive Milling Head With Milling Unit HFWS 1718, ISO 40, Motor 12 kW, 26 A, 18,000rpm At 600 Hz, Drive SIEMENS SIMODRIVE 611A. (1996).

Table Dimensions 1,450 x 6,000mm (7 'T' Slots). Number Of Axis: 3; Axis Travel 'X'=4,500mm, 'Y'=2,500mm, 'Z'=1,200mm. Overall Dimensions L13,500 x W7,000 x H6,500mm. (1962)

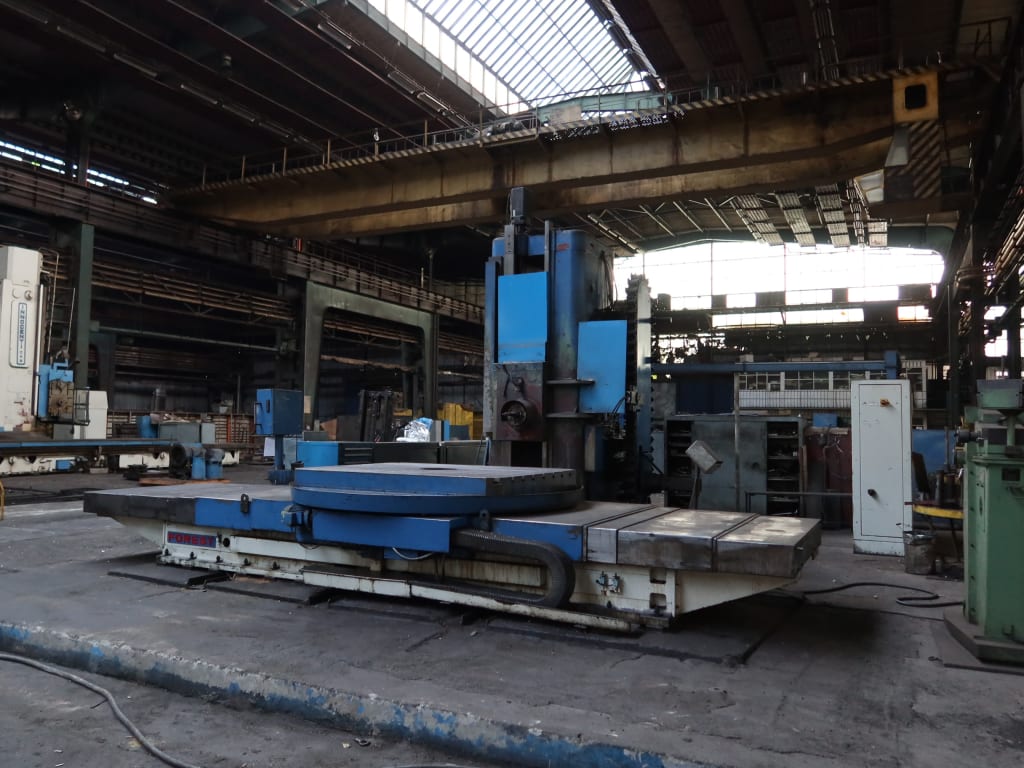

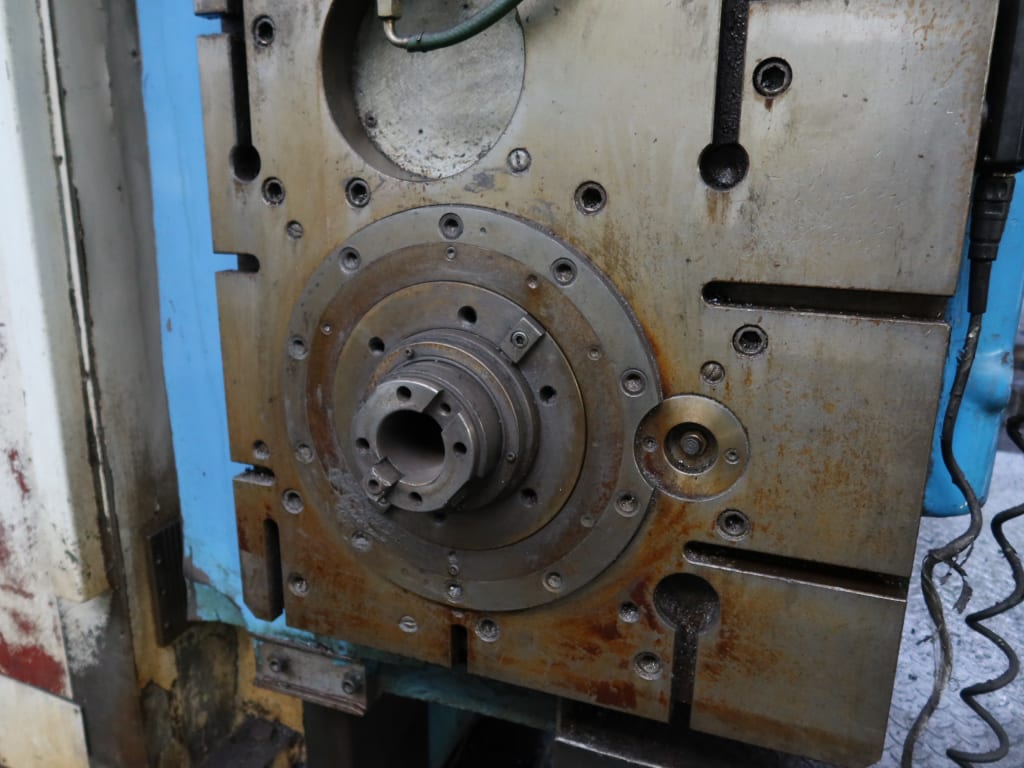

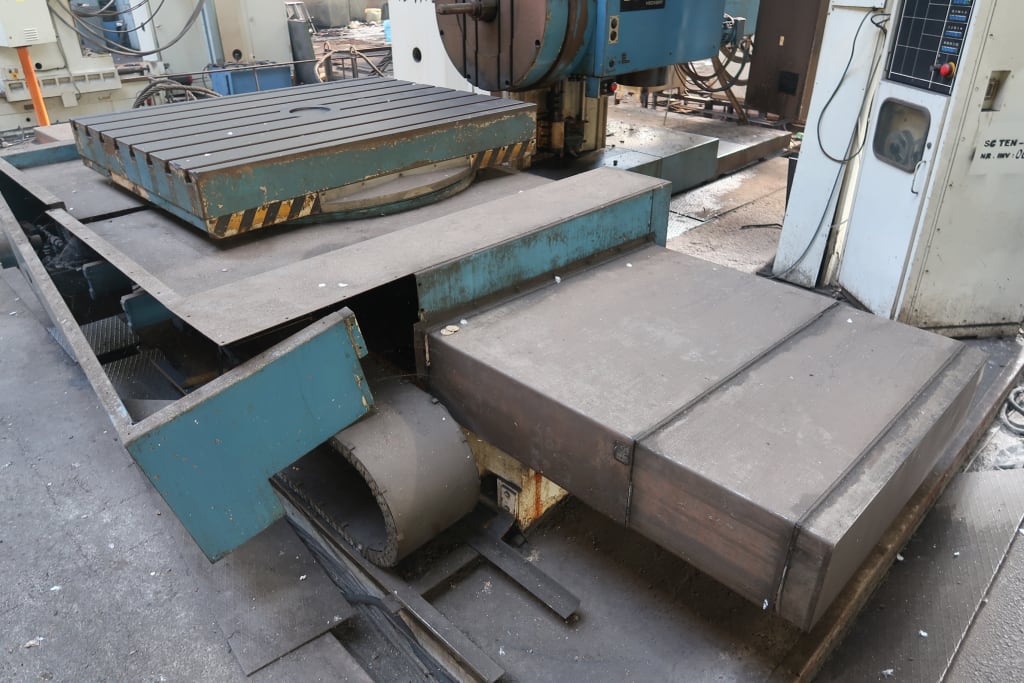

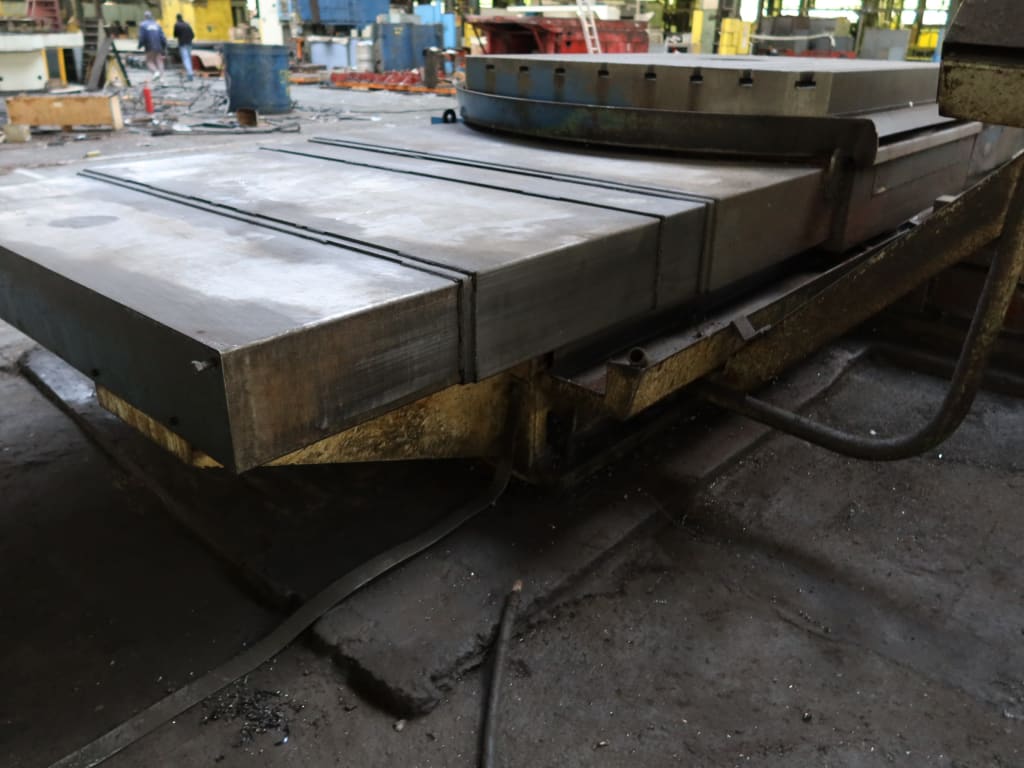

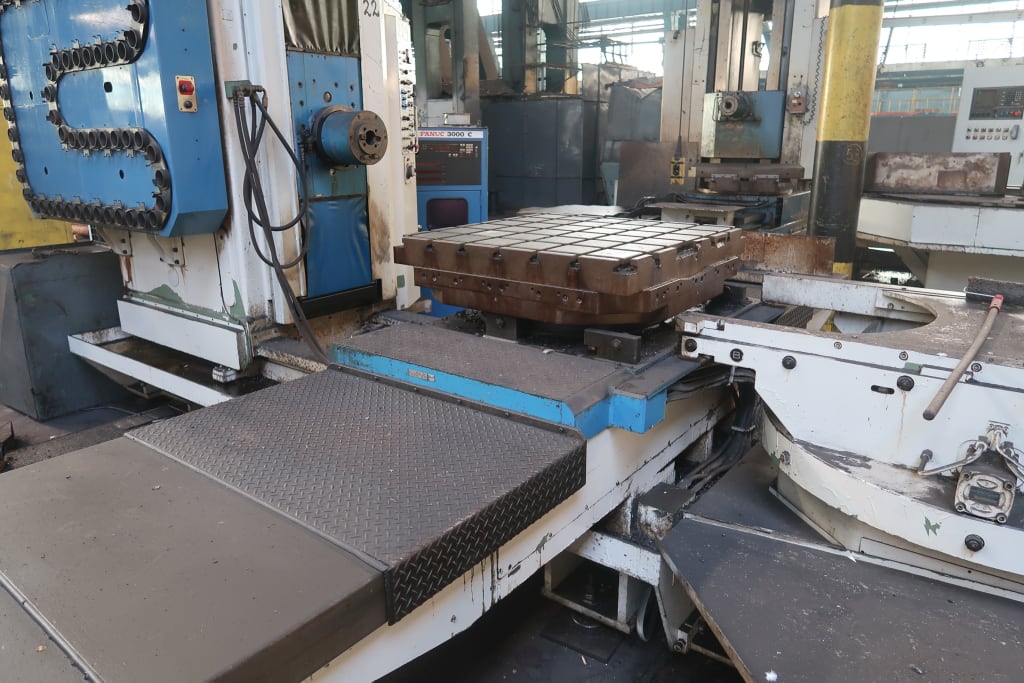

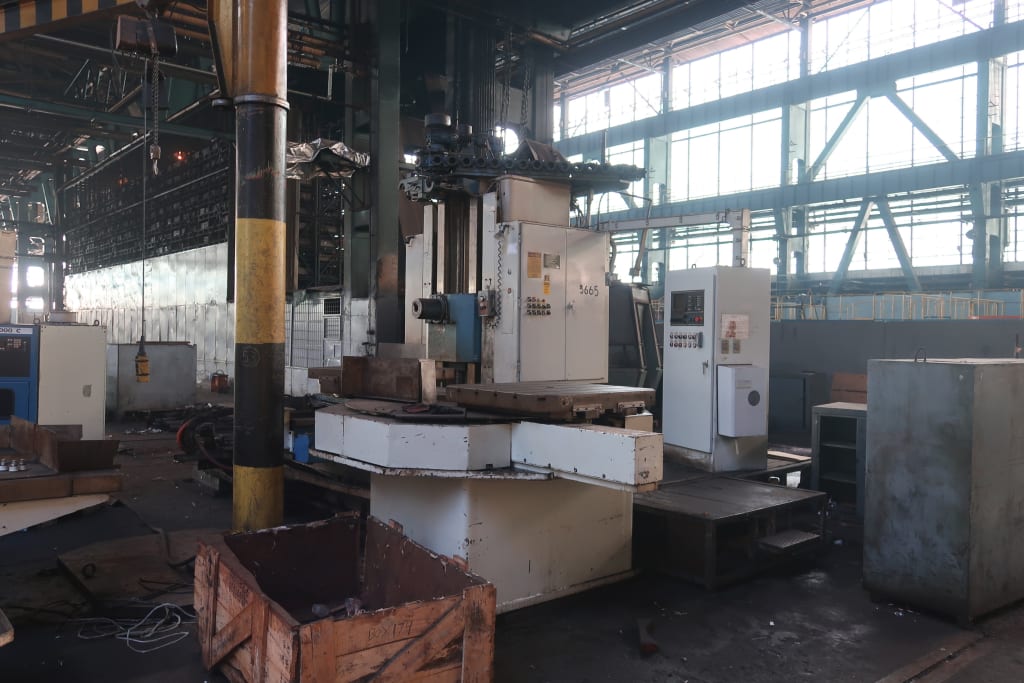

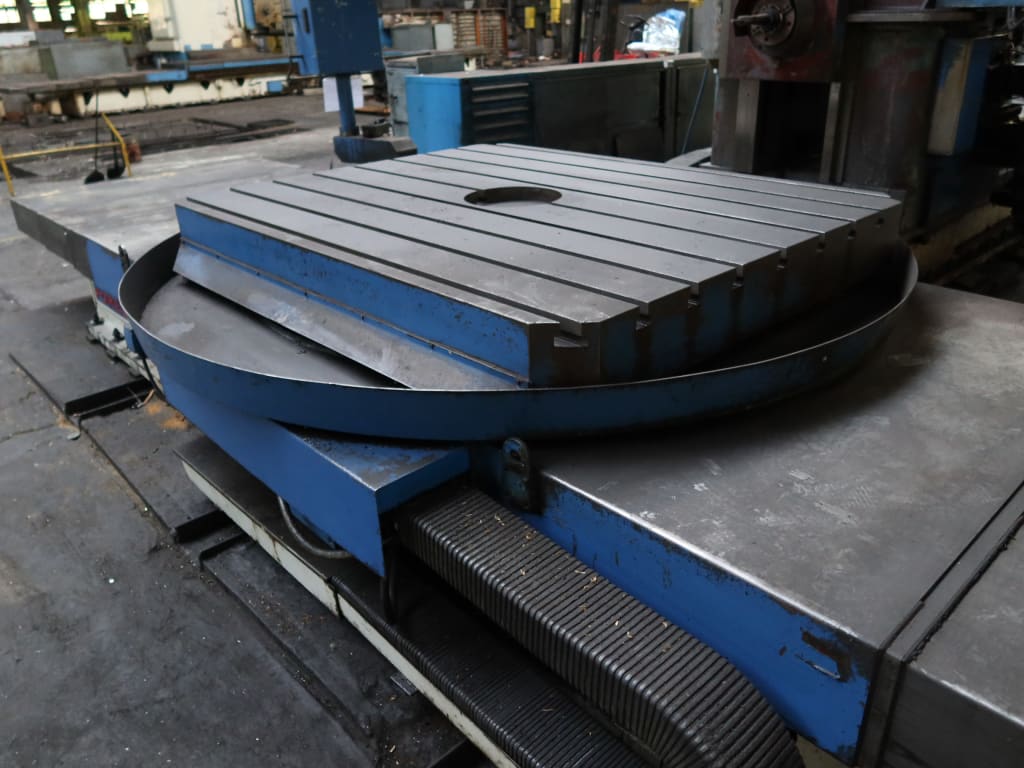

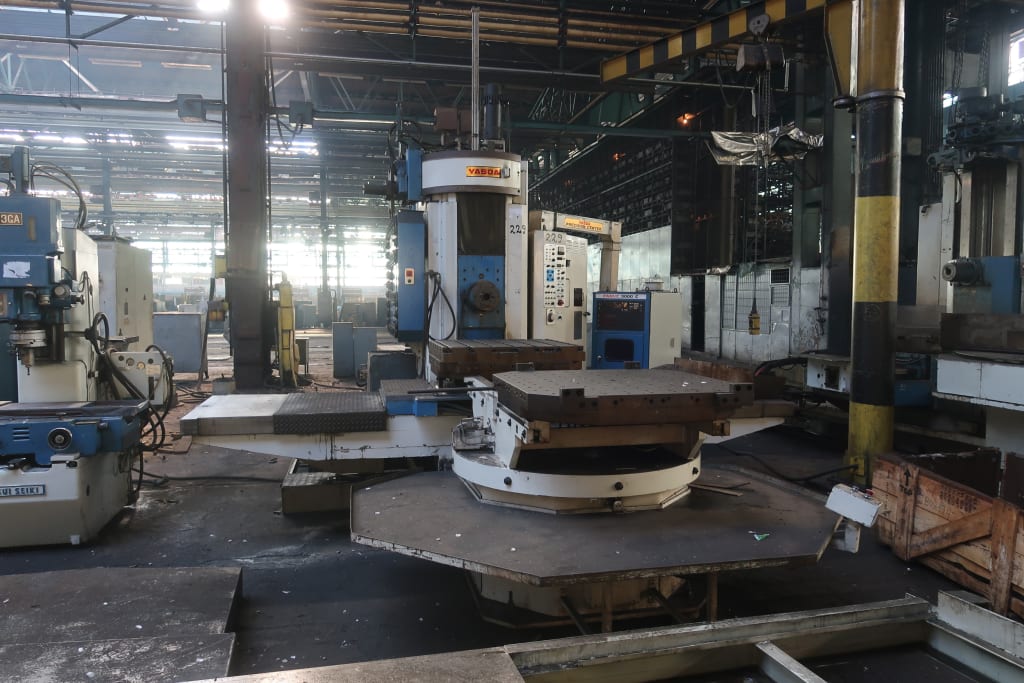

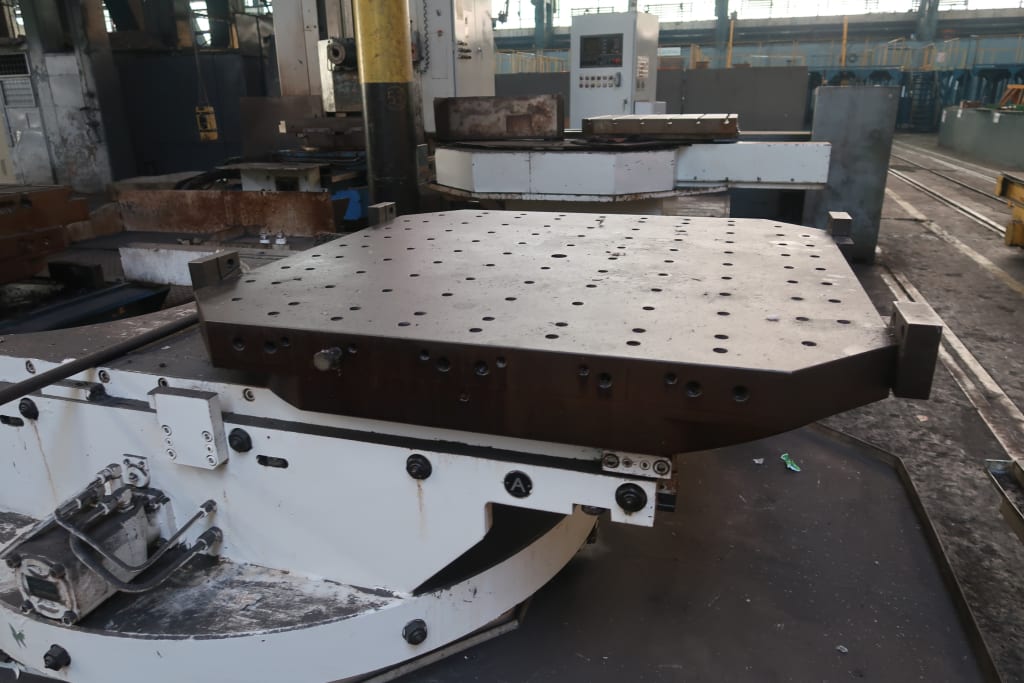

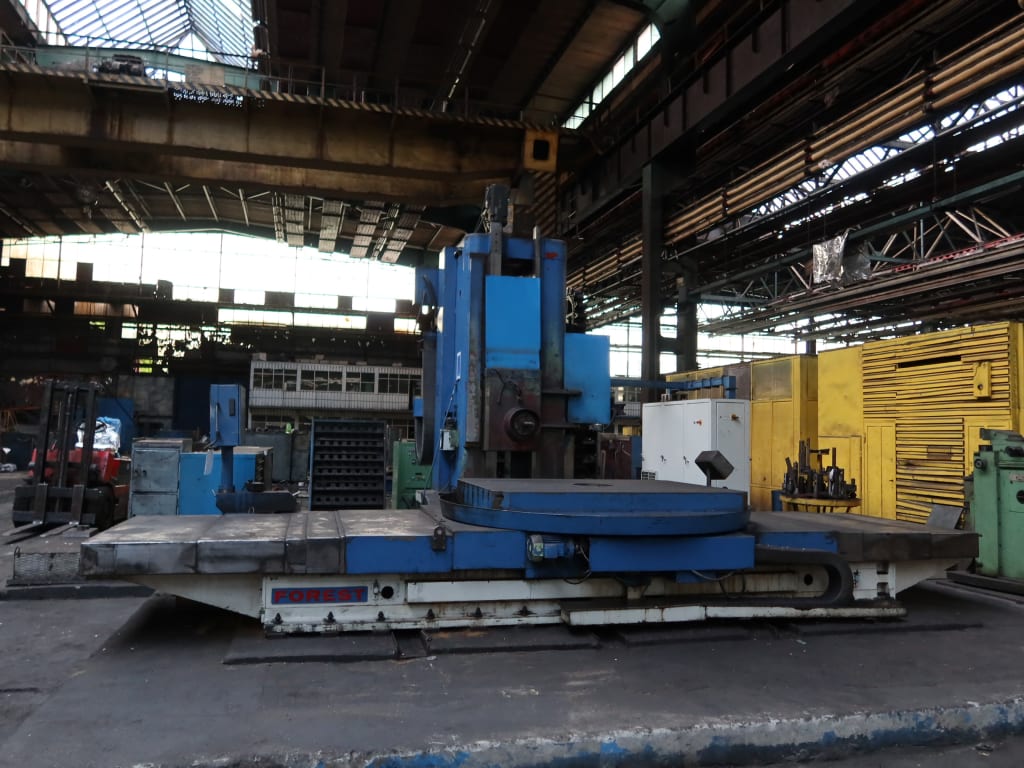

Rotary Table Dimensions 1,600 x 2,000mm (8 'T' Slots). Strokes 'X'=3,500mm, 'Y'=2,000mm. 50 Position ATC. S/No. 1559.

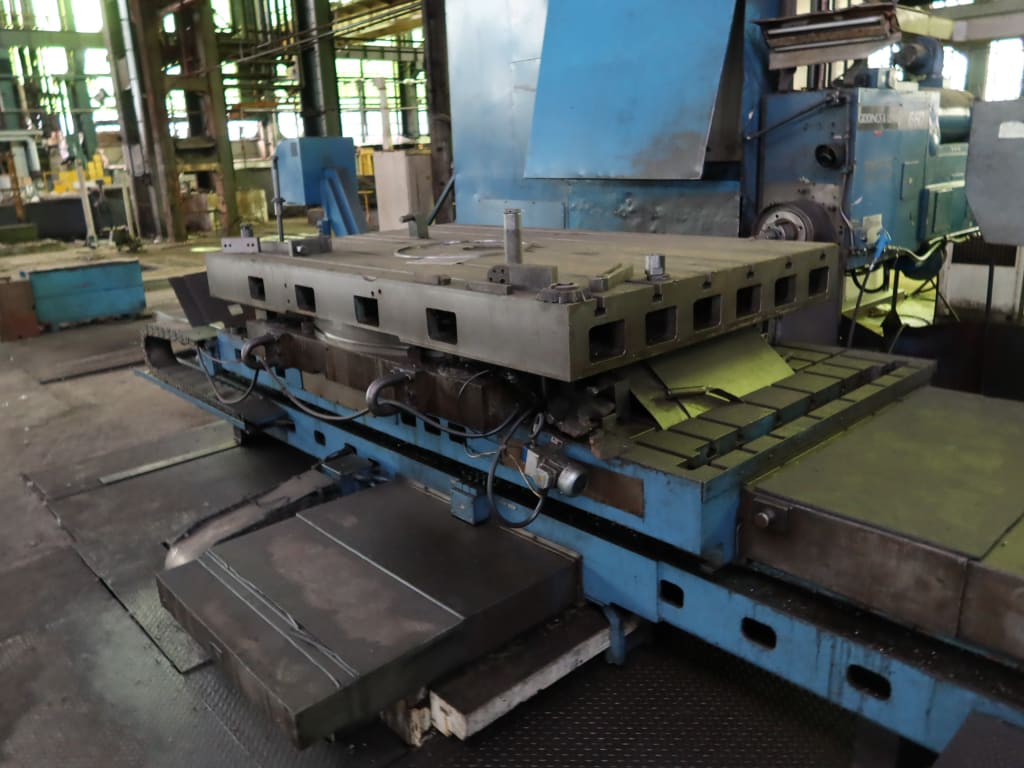

Rotary Table Dimension 1,500 x 2,400mm (6 'T' Slots), Set On The Cross Saddle. Axis Travel 'X'=2,500mm, 'Y'=2,500mm, 'W'=1,500mm, 'Z'=1,000mm. Cross Saddle Dimension L2,750mm, W1,500mm. (2002)

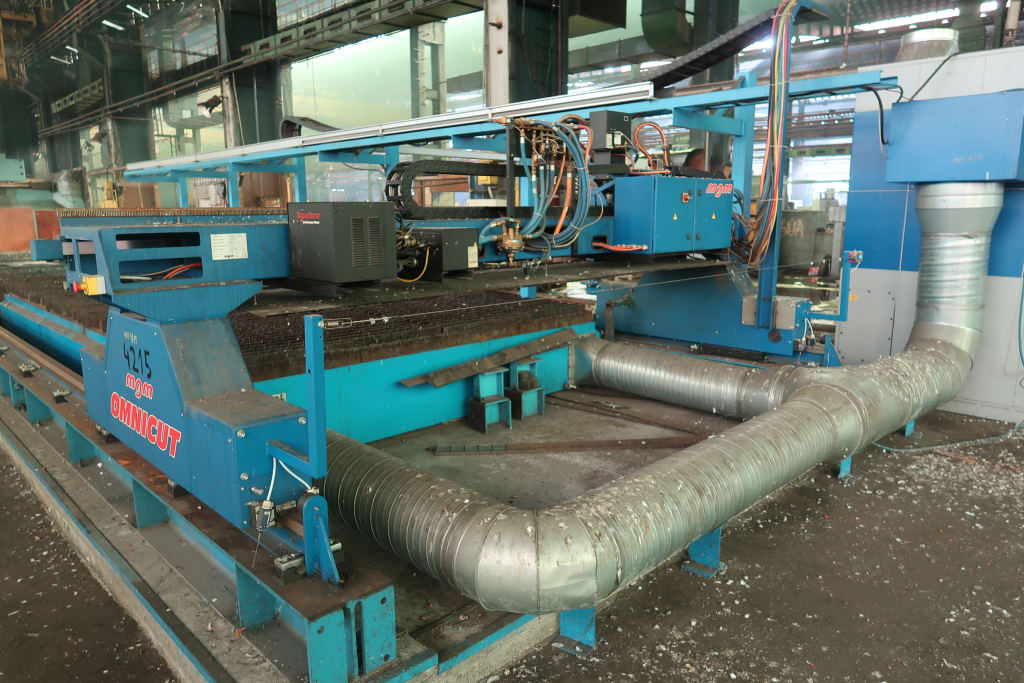

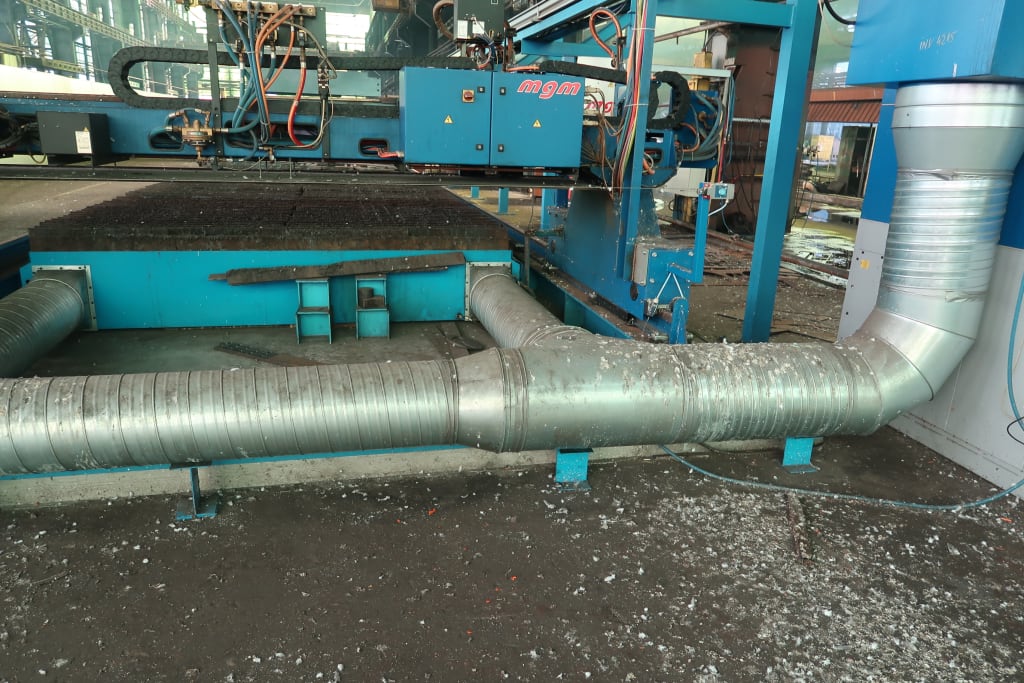

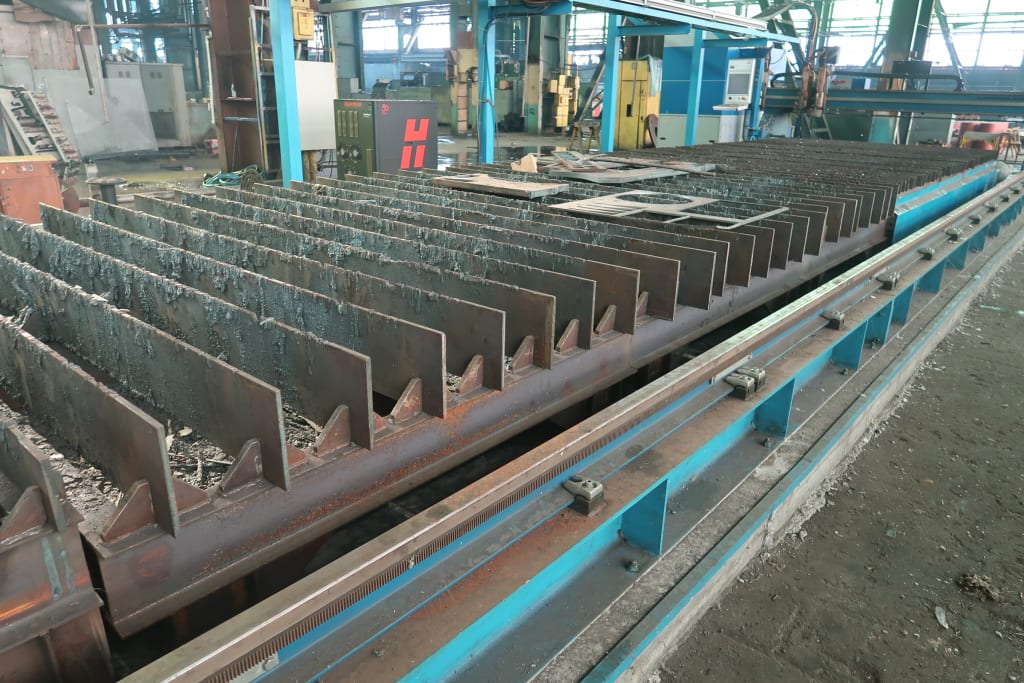

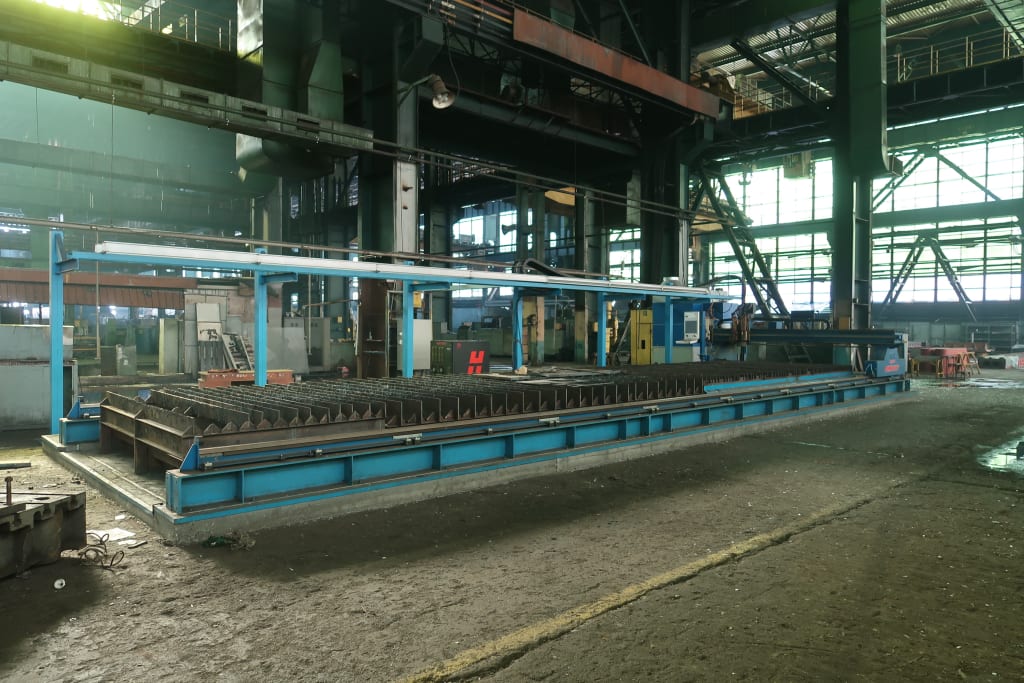

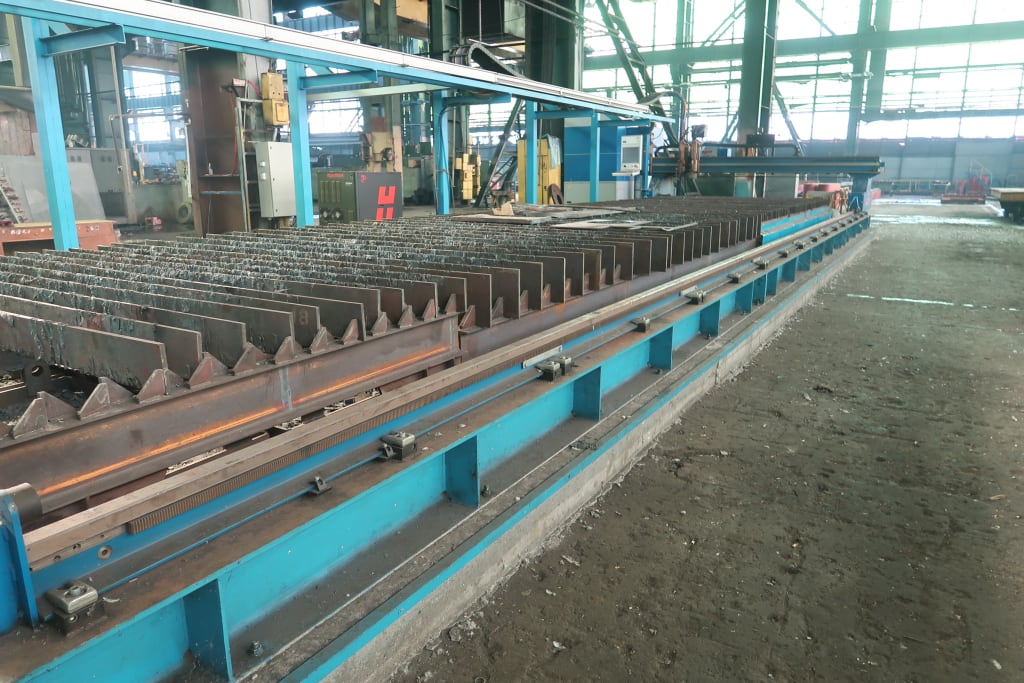

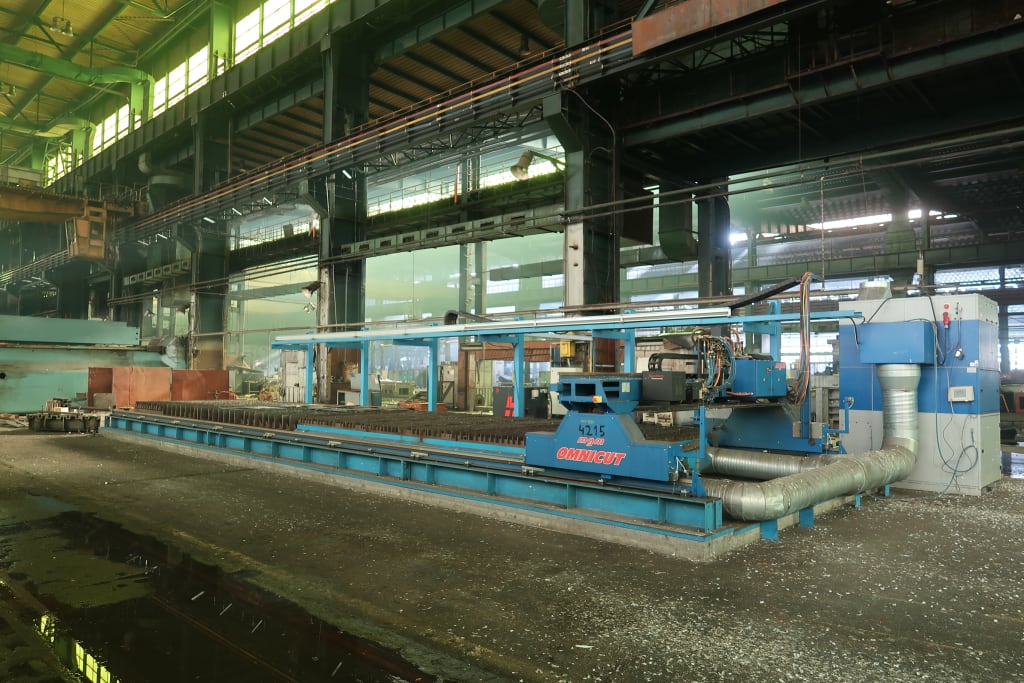

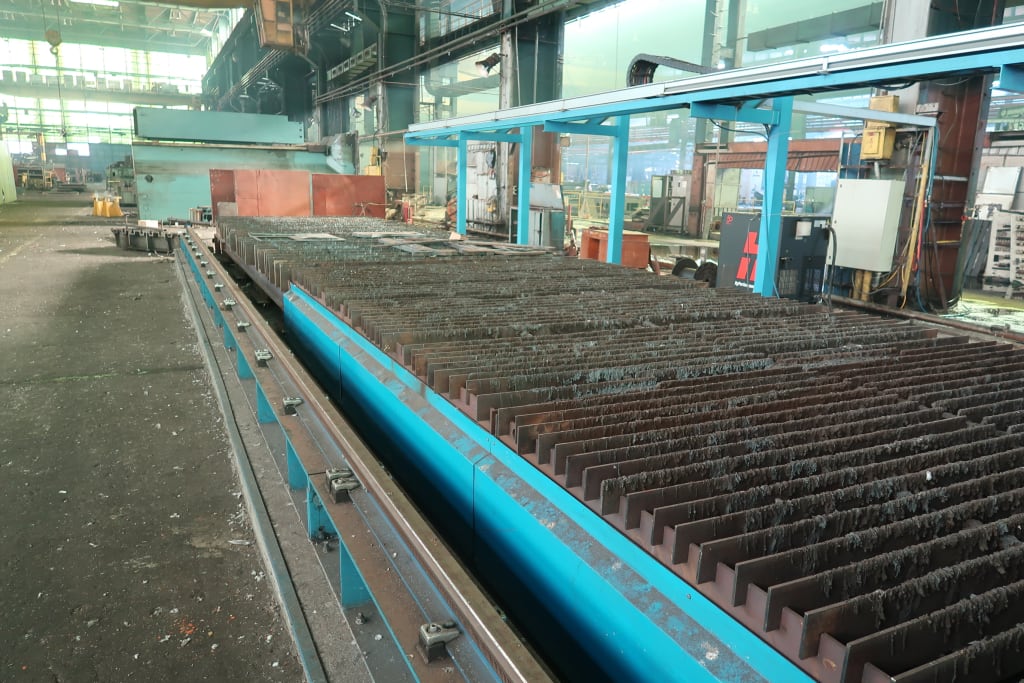

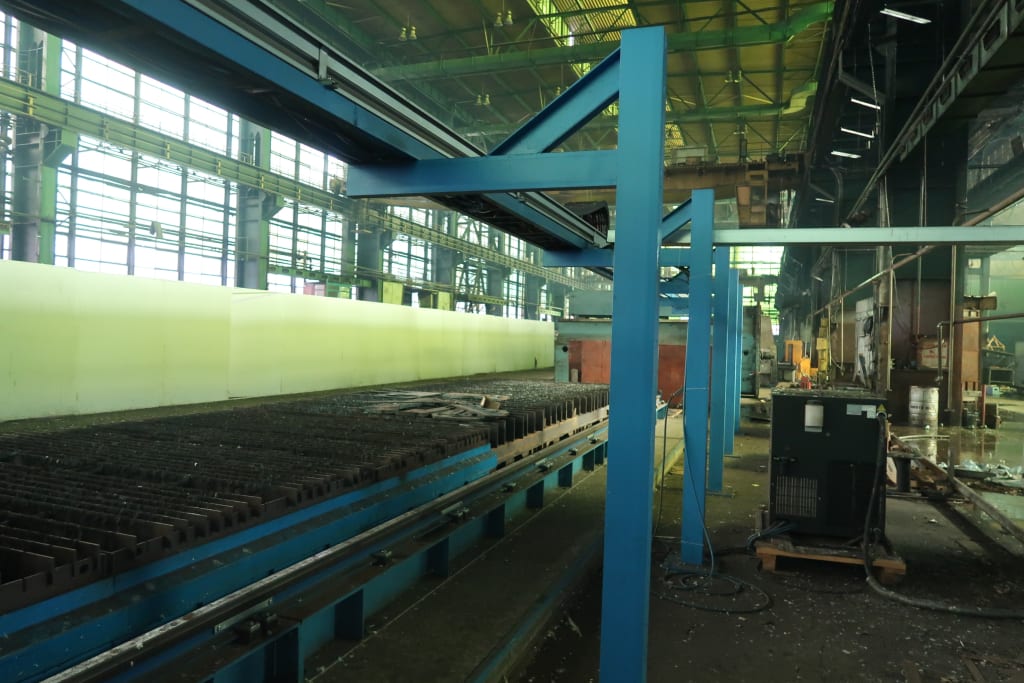

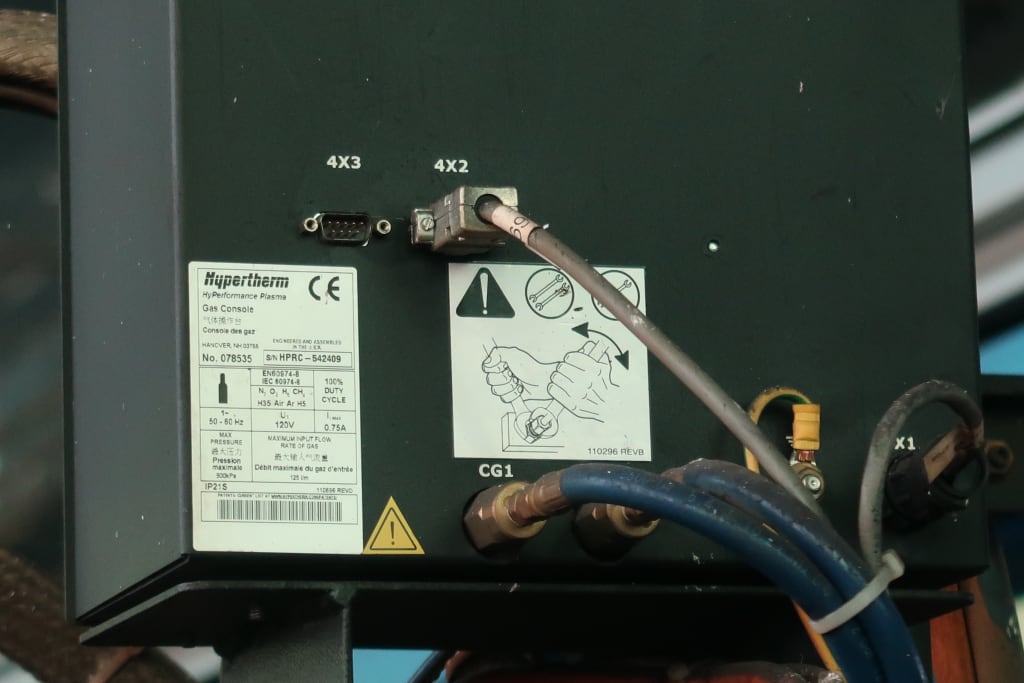

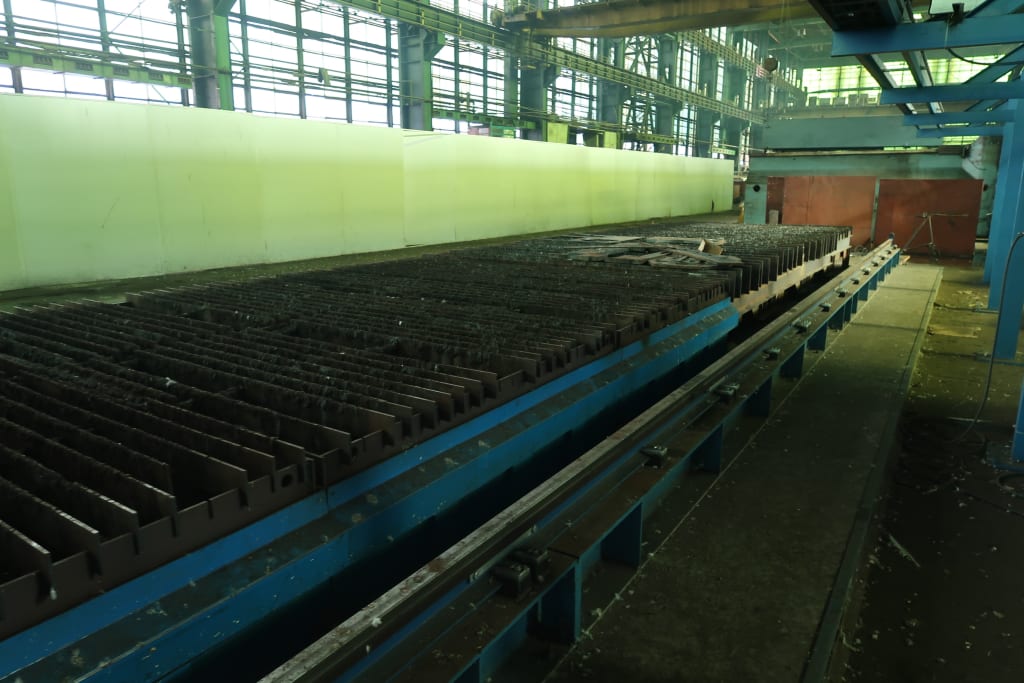

Cutting Table Dimension 17,000 x 3,000mm. S/No. 204006.18 (2018).

-1988

Table Dimension 980 x 980mm. Axis Travels 'X'=1,000mm, 'Y'=1,000mm, 'W'=1,000mm, 'Z'=600mm. 60 Position ATC. S/No. 78-X061 (1978).

Table Dimension 1,020 x 1,020mm (5 'T' Slots). Axis Travel 'X'=2,200mm, 'Y'=1,500mm, 'W'=500mm, 'Z'=500mm.

Table Dimensions 1,300 x 350mm (5 'T' Slots). Axis Travel 'X'=500mm, 'Y'=300mm, 'Z'=300mm. S/No.272.

S/No.978. Motor: 2.2 kW. Voltage: 400V (1999)

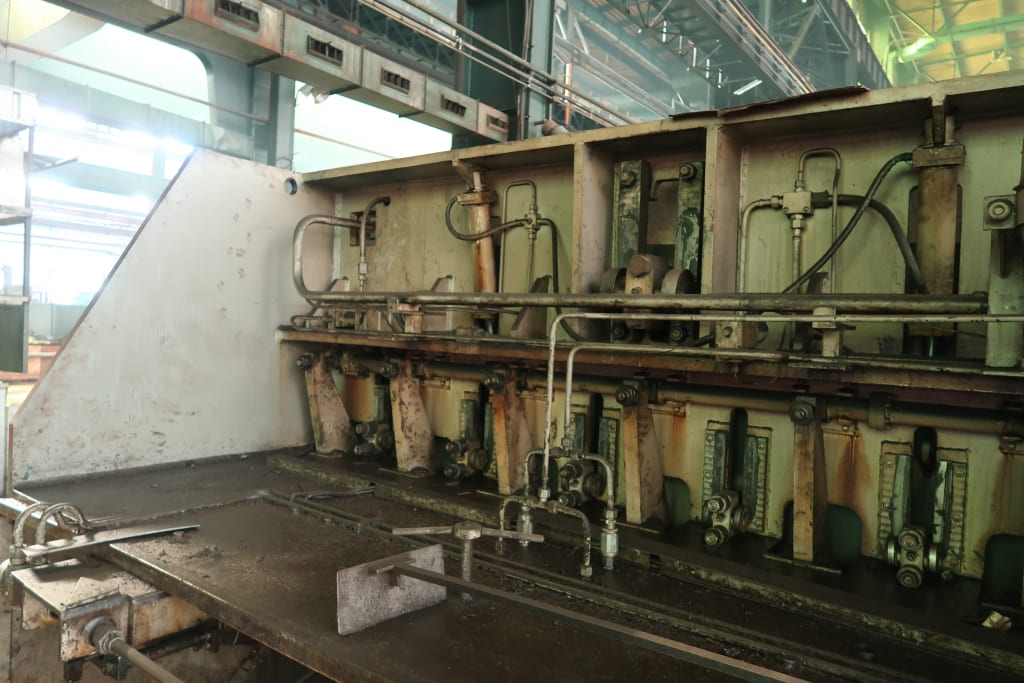

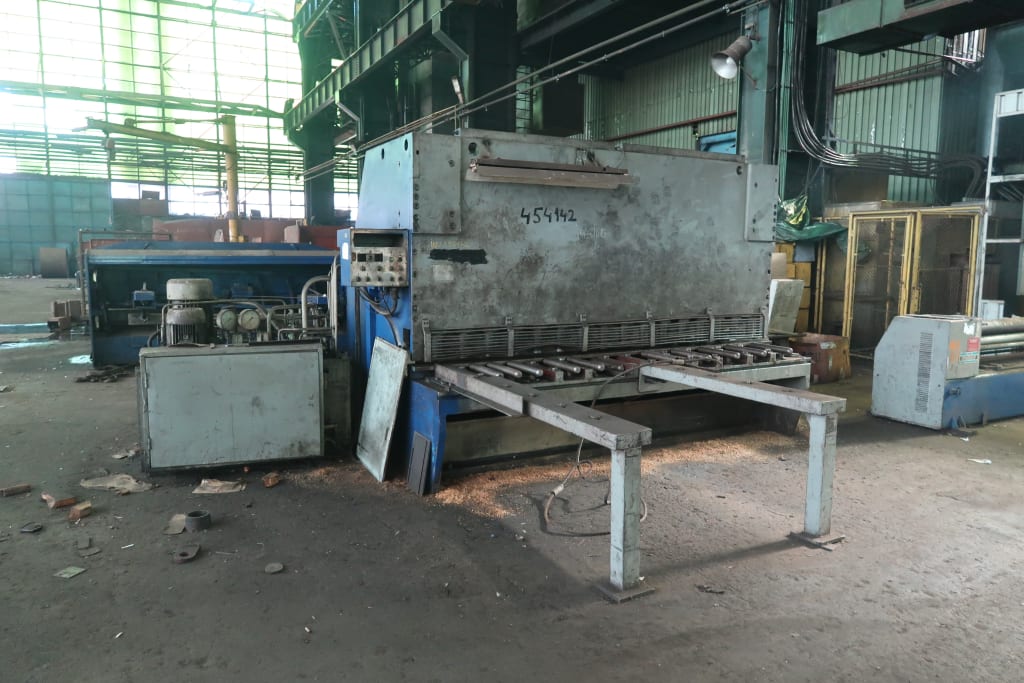

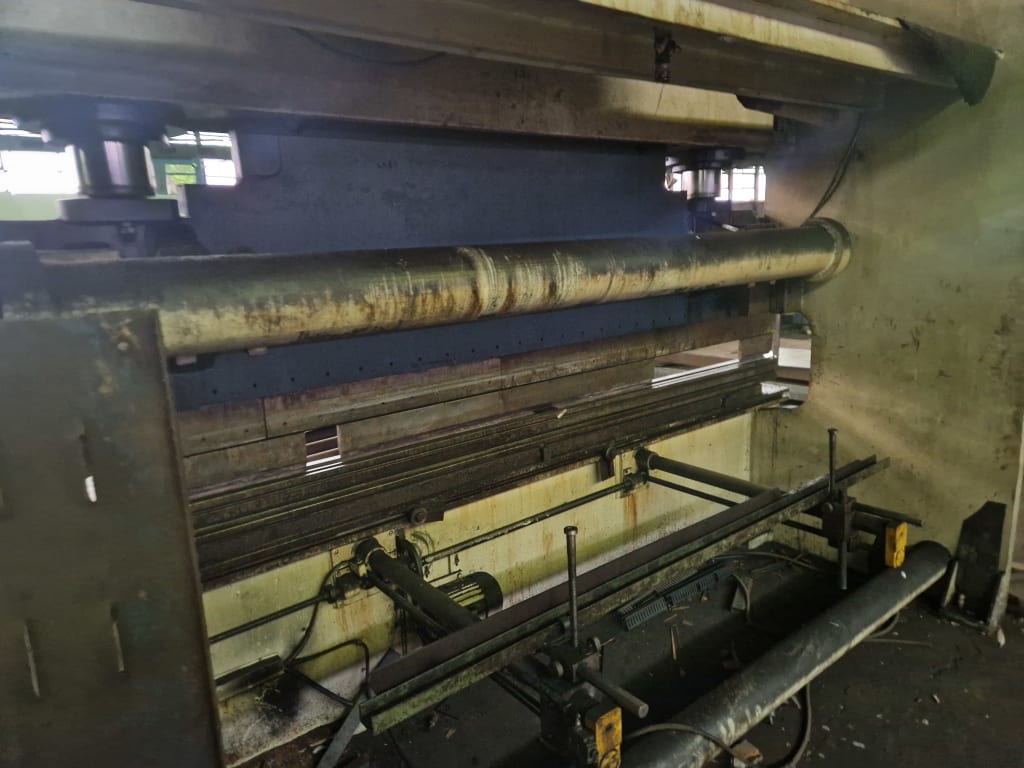

Cutting Length 3,150mm. Maximum Thickness 16mm. With Front Support/Loading Arms.

With Roller Support & Back Gauge. S/No. 8048.
