Immediate Purchase Opportunity – Rösler Shot Blasting and Kurtz Automated Die Casting Systems

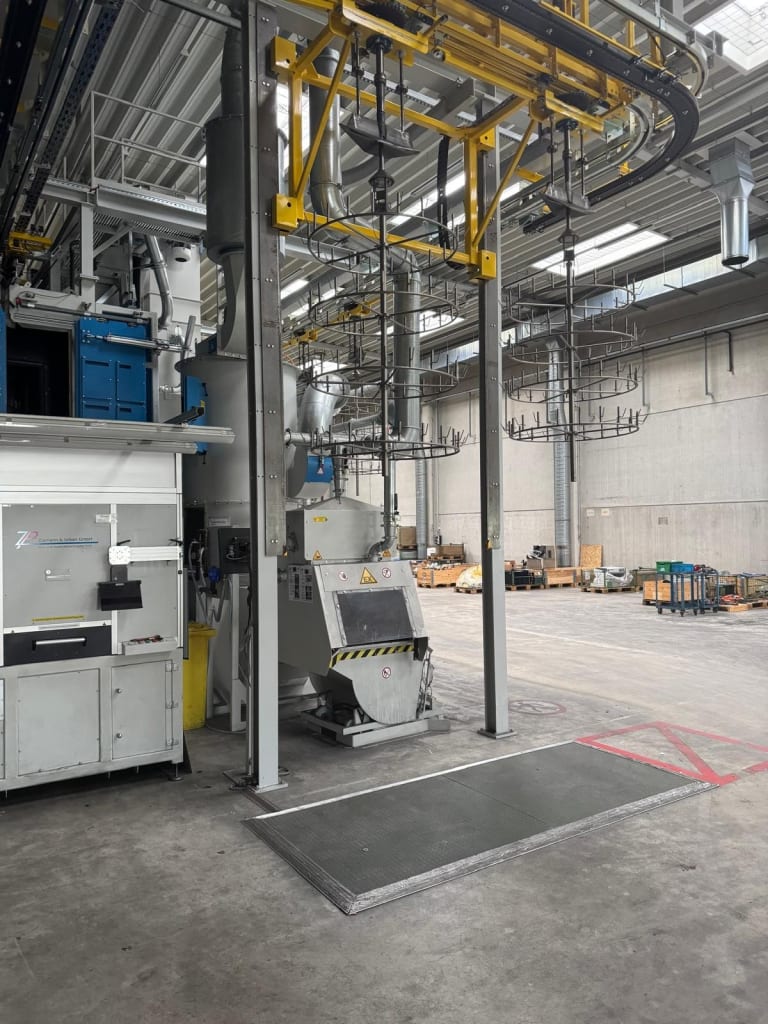

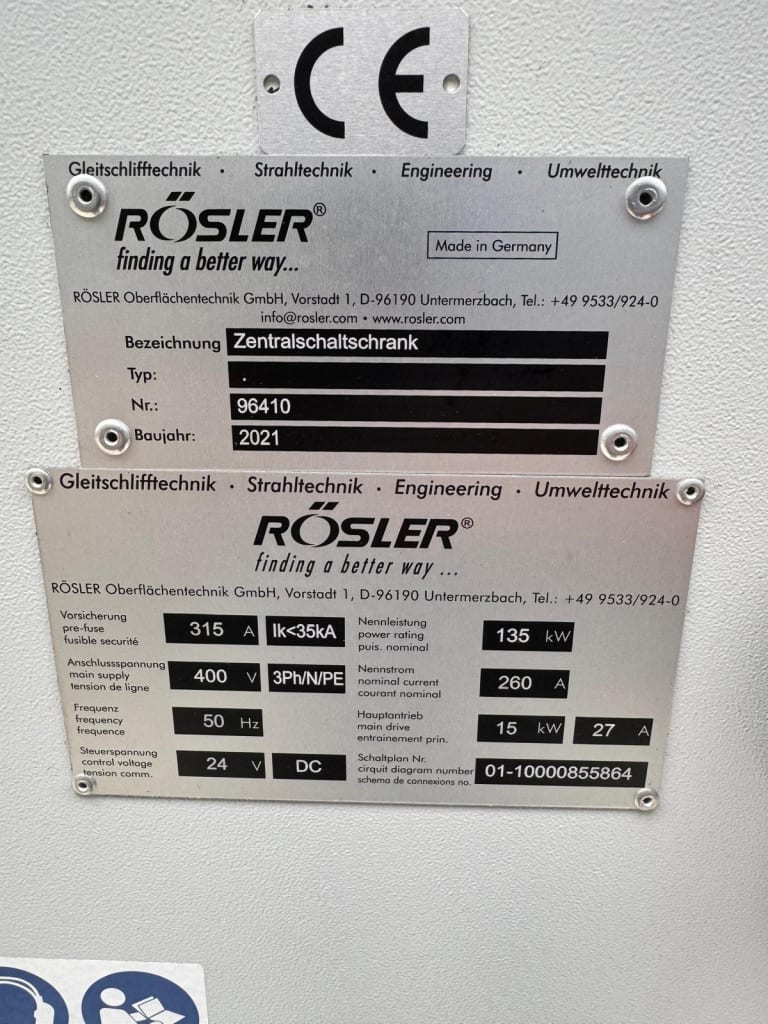

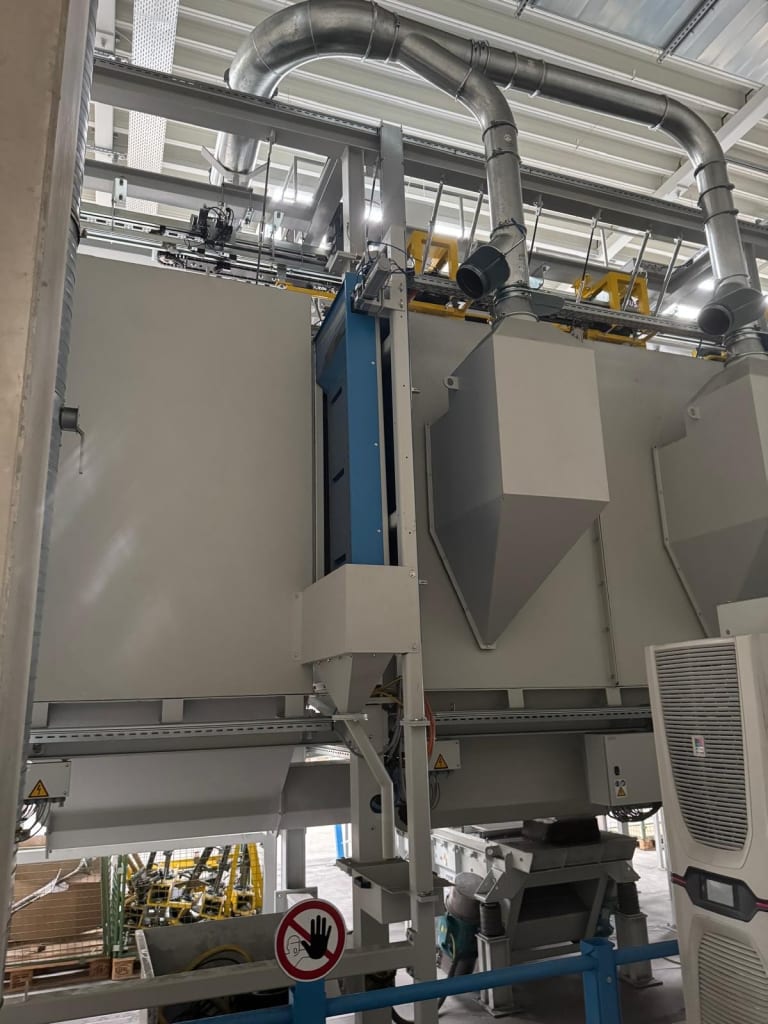

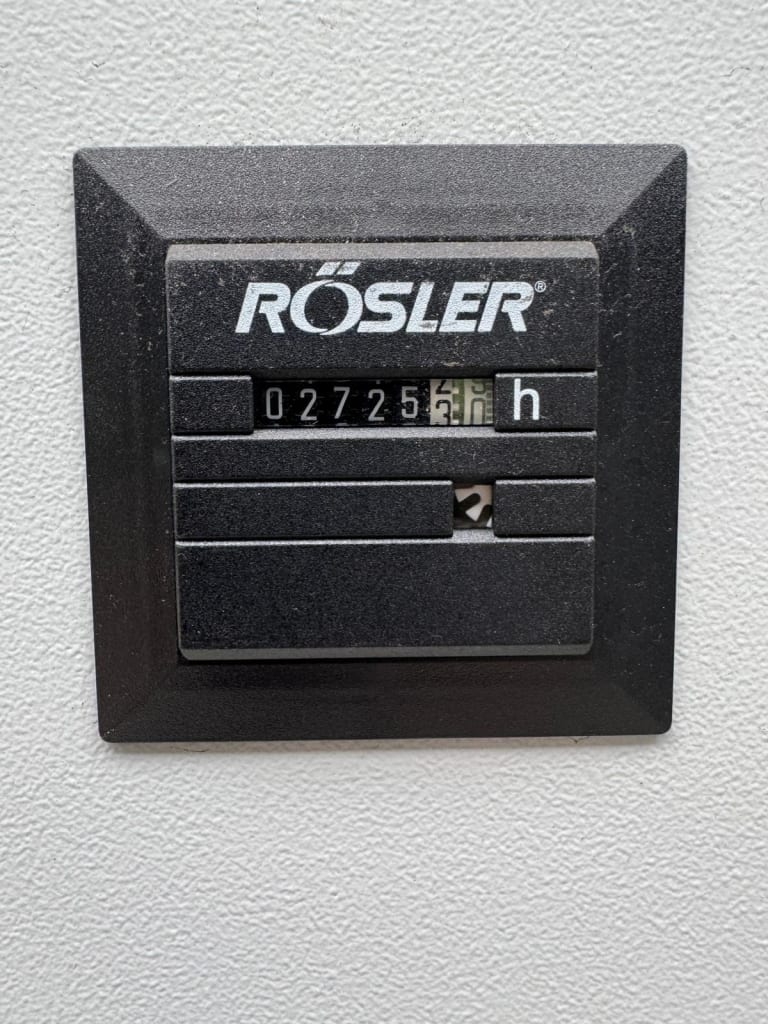

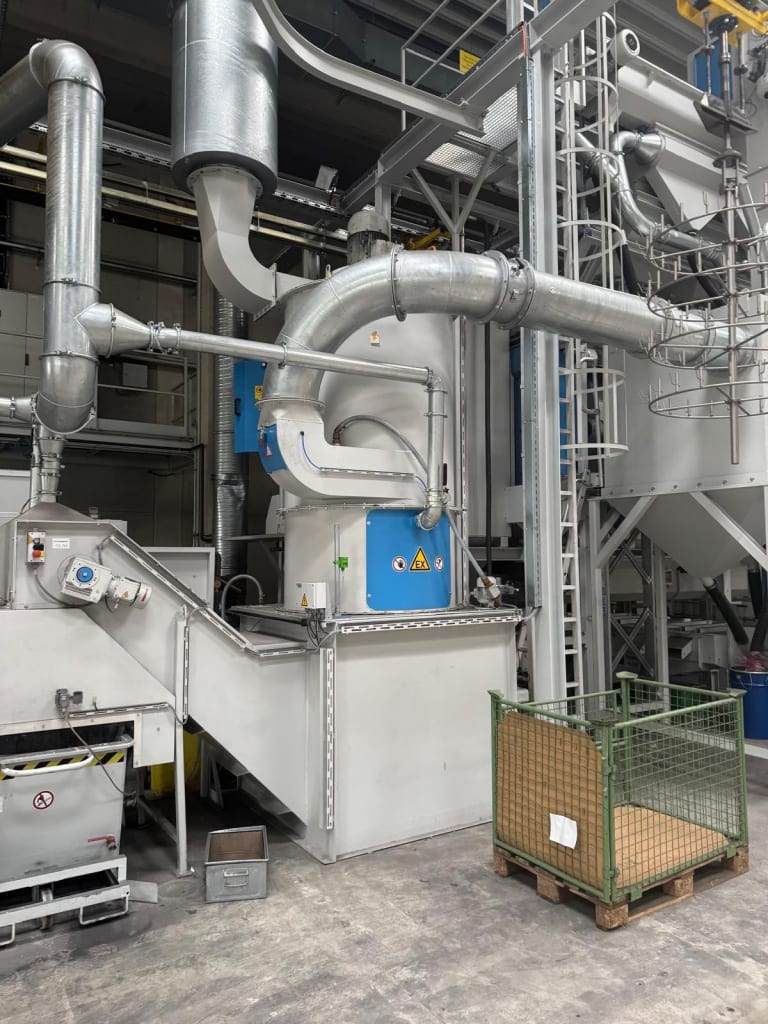

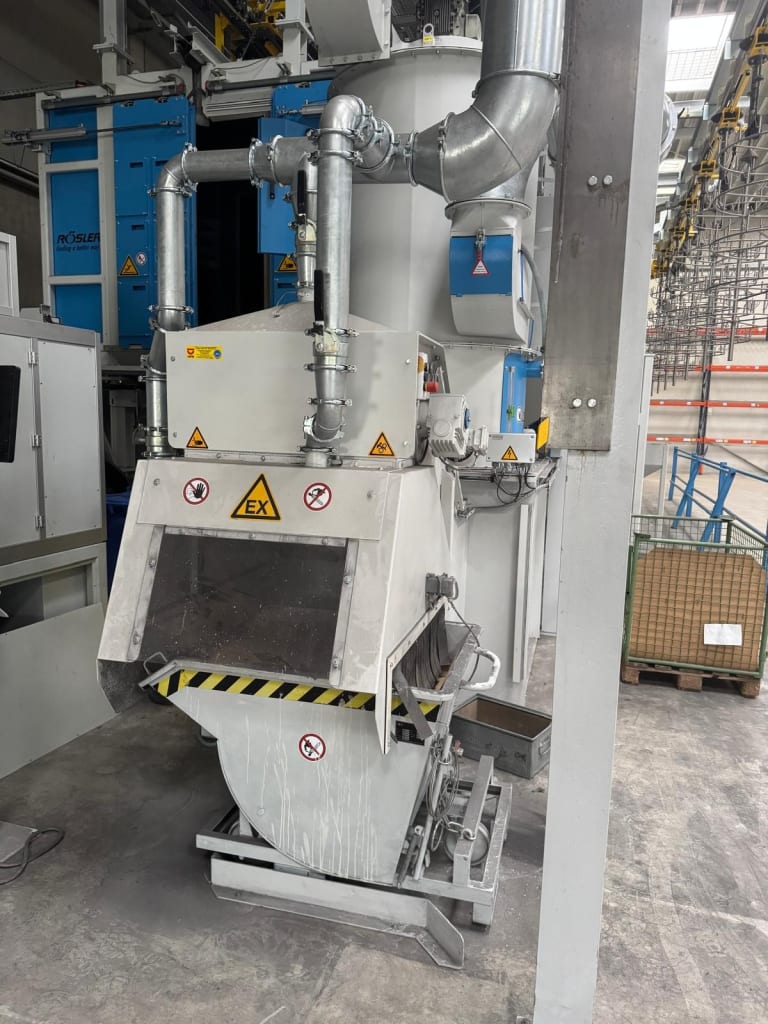

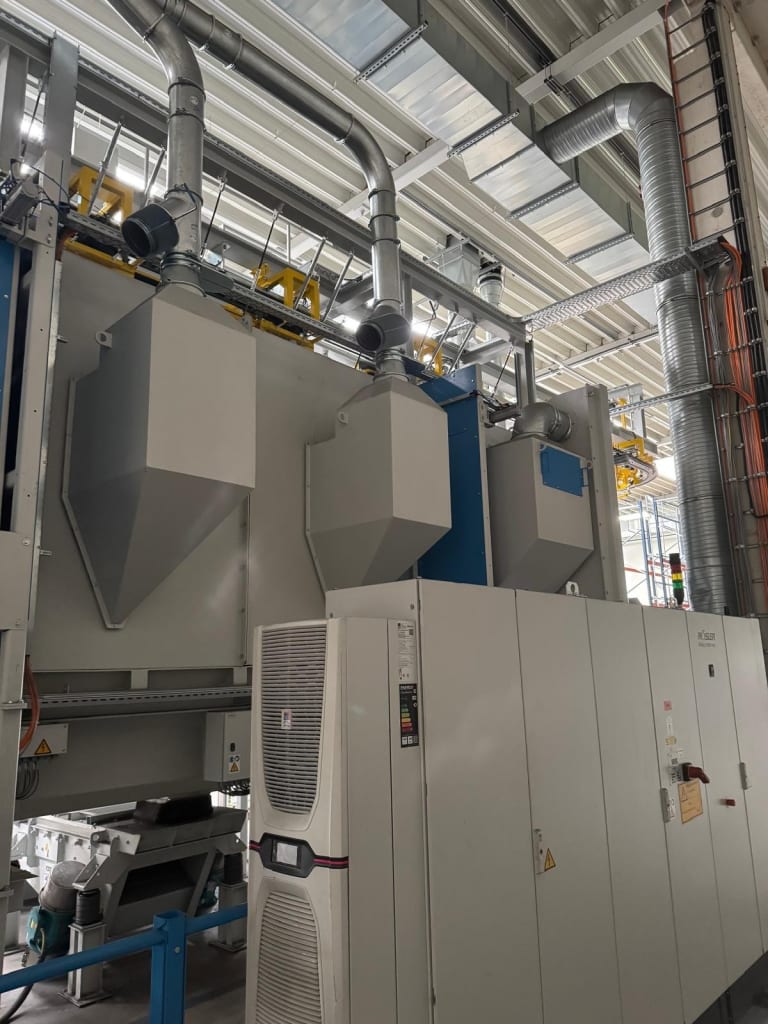

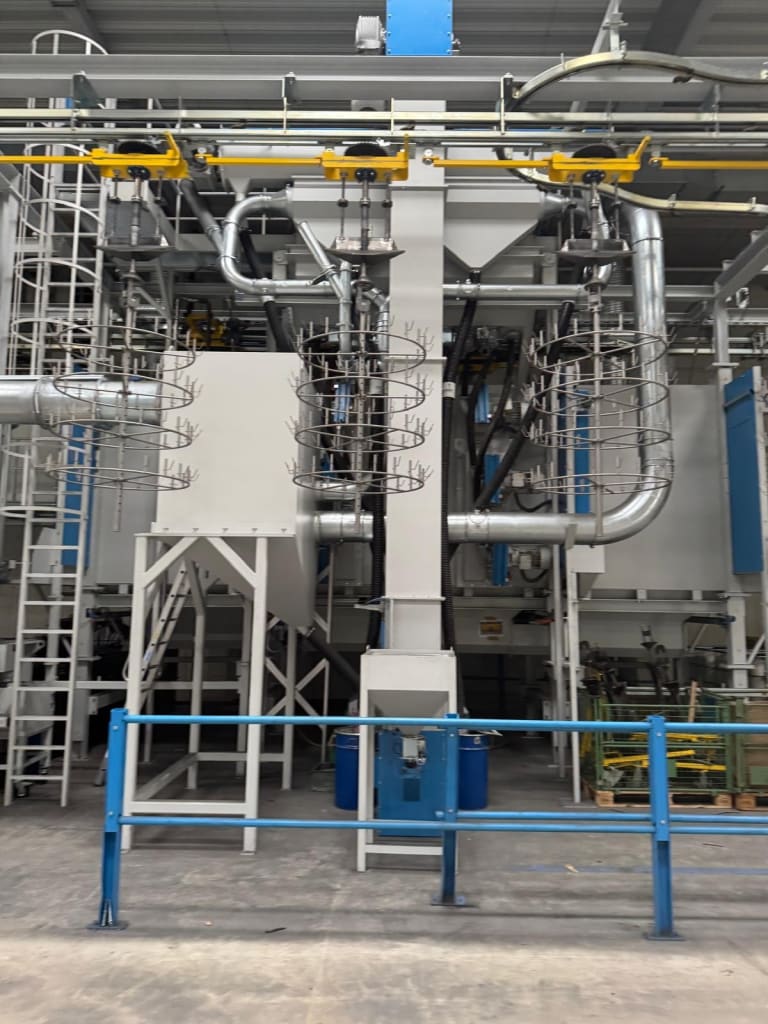

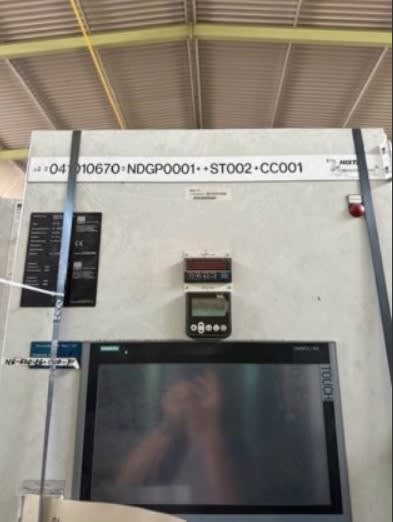

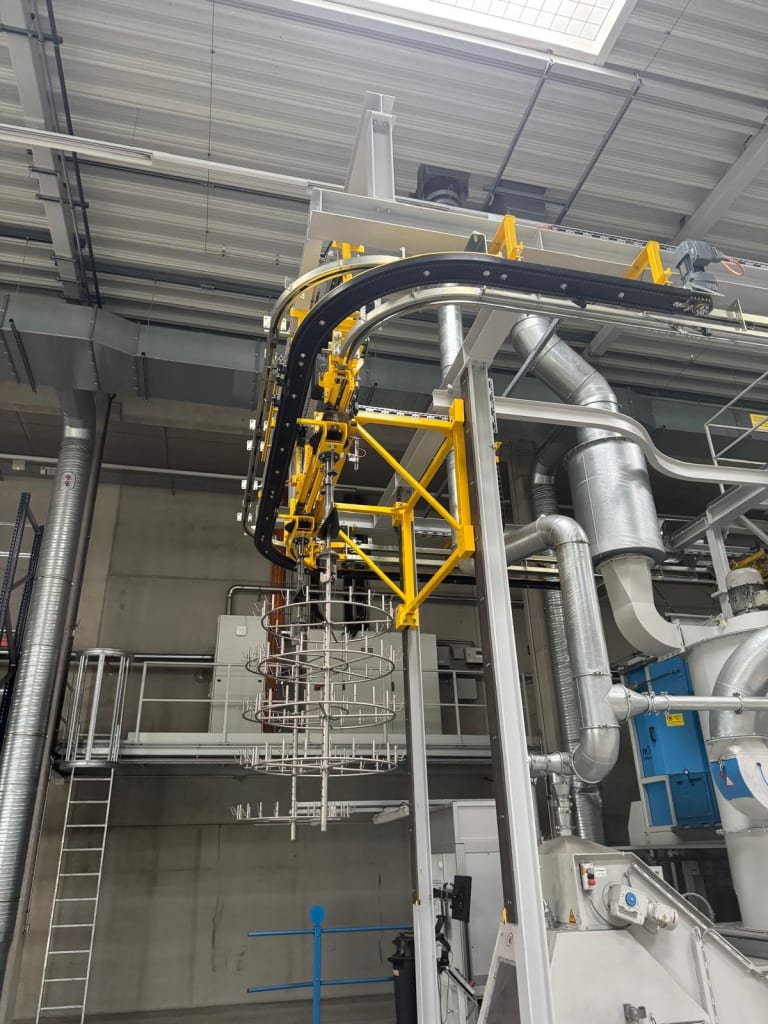

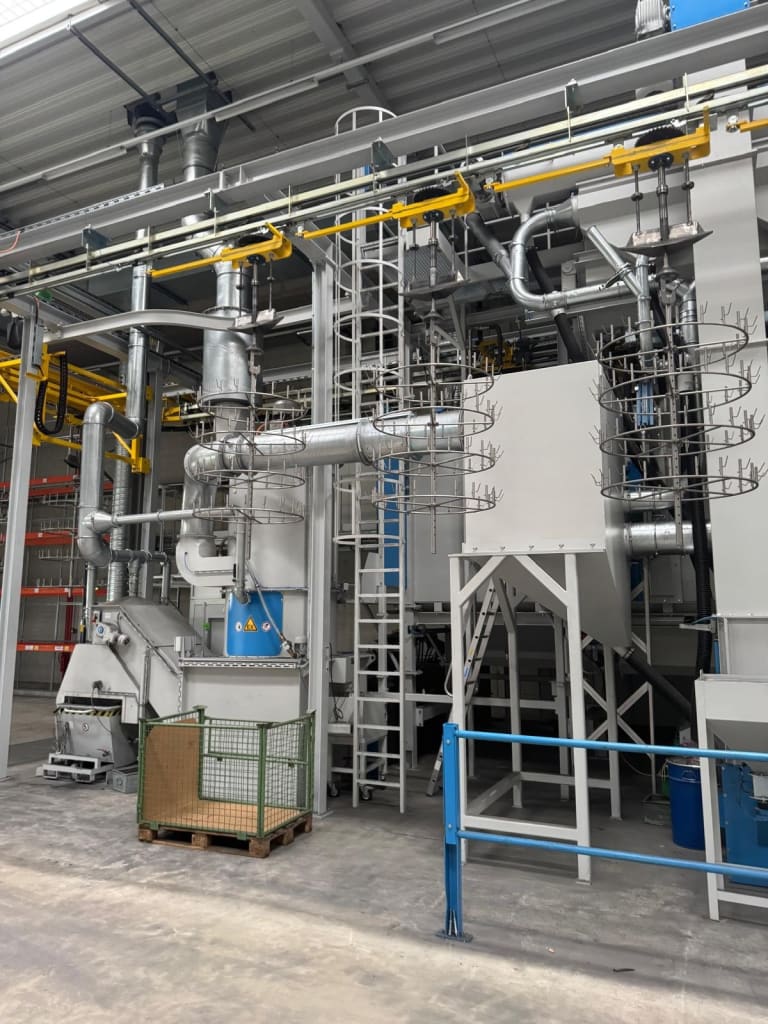

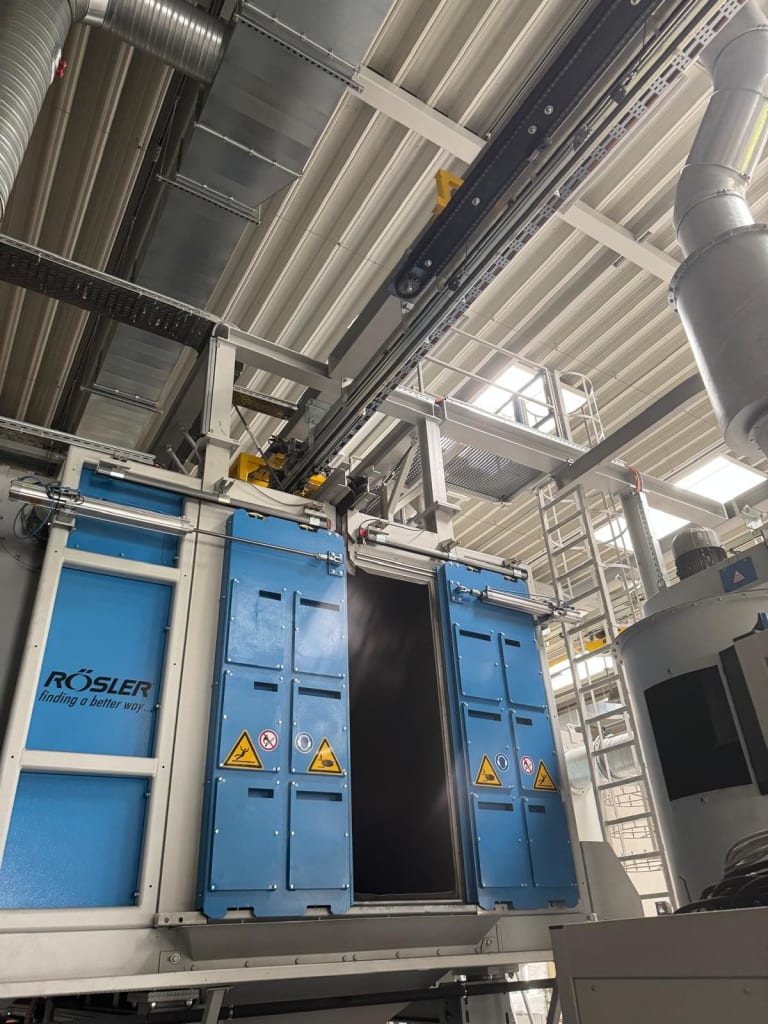

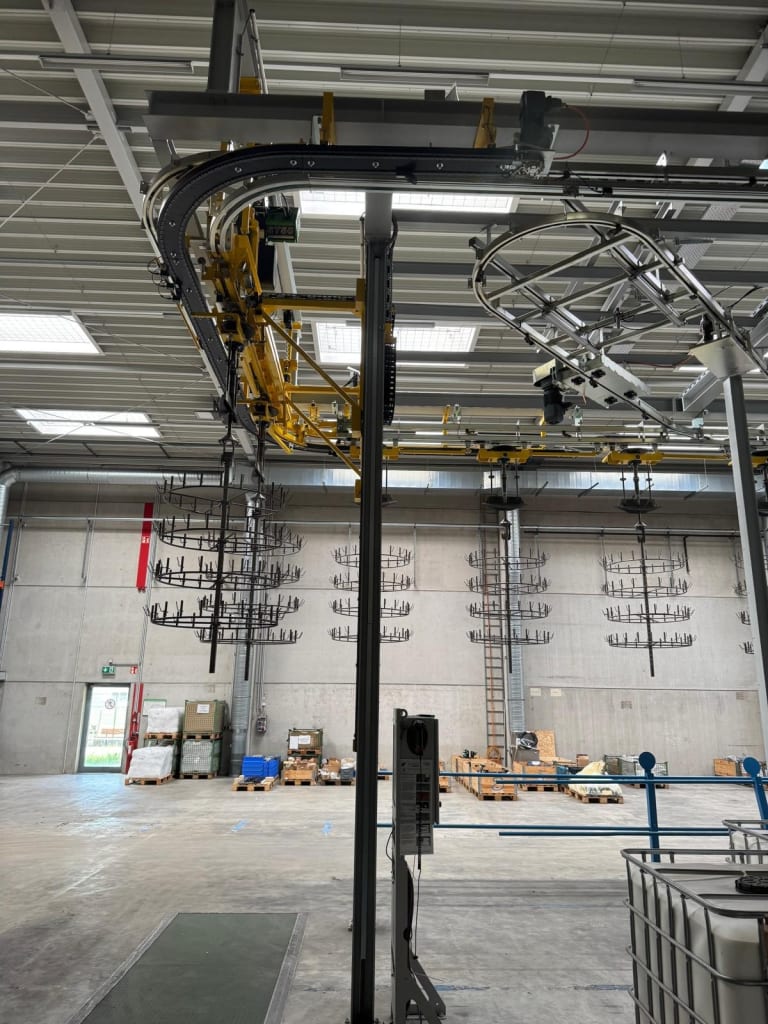

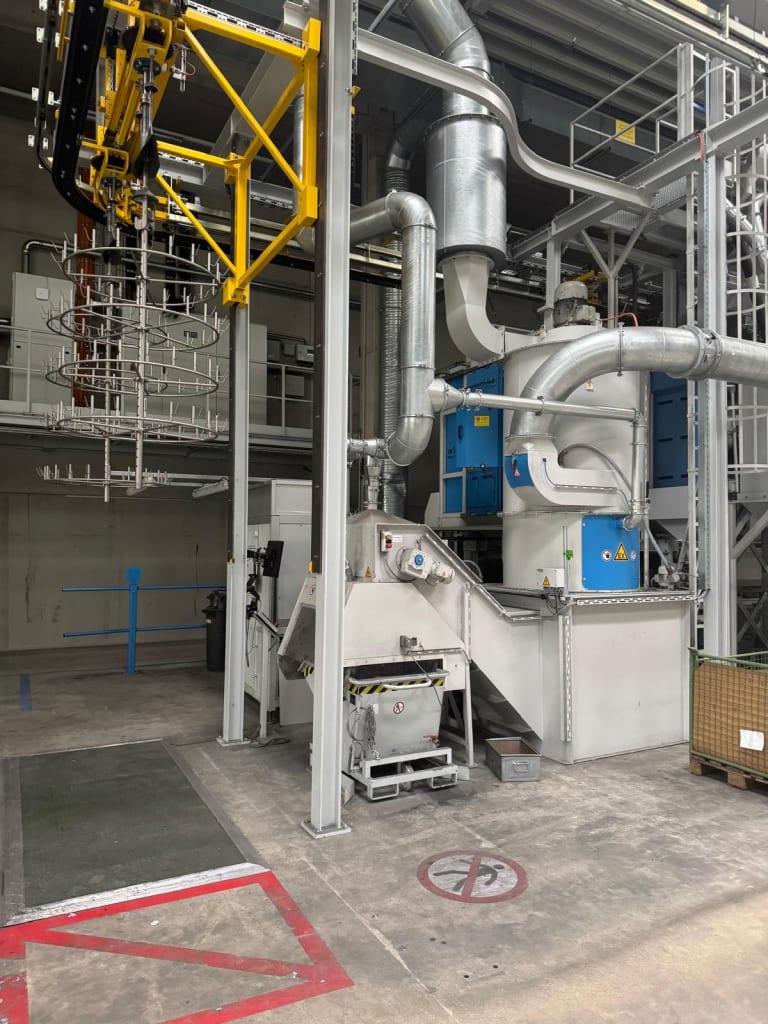

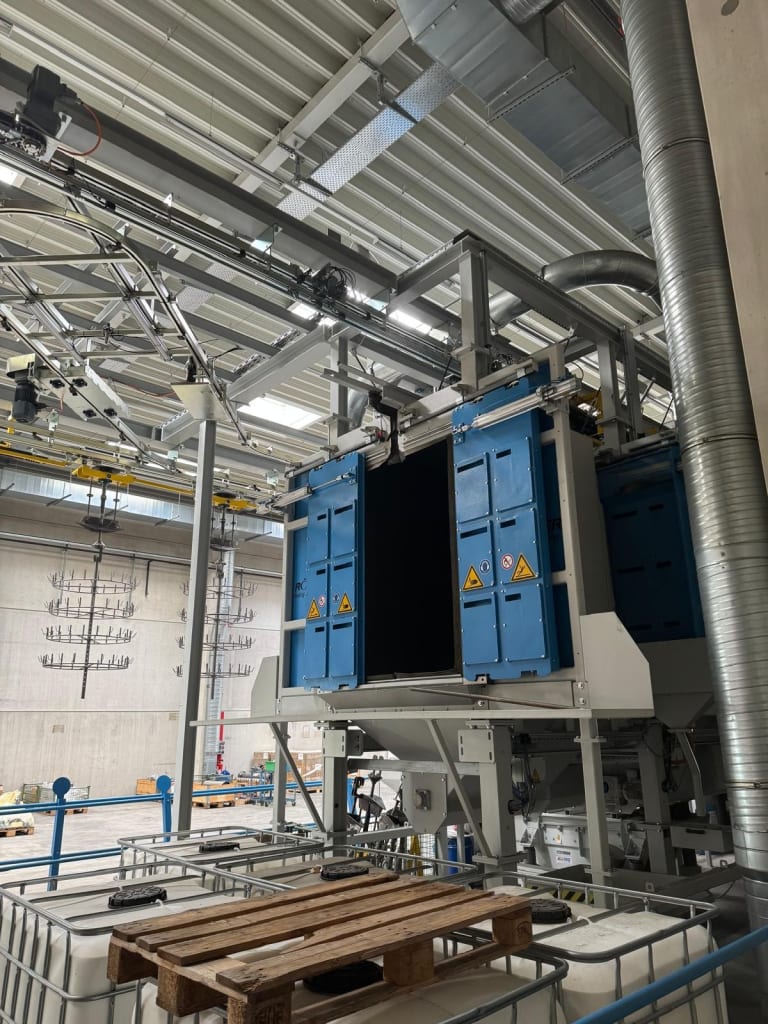

3 Part System. Modern, High-Performance Overhead Conveyor Shot Blasting System Designed For Continuous Surface Treatment Of Medium To Heavy Components. Suitable For Cleaning, Descaling And Surface Preparation Prior To Coating. The System Was Used For Blasting Magnesium Die-Cast Components. With The Same Blasting Media, The System Can Also Be Used For Aluminium Die-Casting Or Aluminium Casting, Brass Casting, E.G, Fittings. The Blast Cabinet Has Four Blast Turbines With Automatic Abrasive Recirculation For Continuous Use Of The Blasting Media. The System Has A Wet Separator. The Overhead Conveyor System Has 18 Rotating Stations To Which 18 Workpiece Carriers Can Be Attached. There Are 14 Stainless Steel Workpiece Carriers On Which Components Can Be Hung. Operating Hours: 2,725. Rated Power: 135 Kw/400v. 6 Blast Wheel Turbine. Rated Speed Per Turbine: 2,500 Rpm. Rated Blast Media Quantity Per Turbine 45Kg. With Circulating Overhead Conveyor, Including Workpiece Carrier, With Wet Filter System. Control System Siemens Simatic HMI. S/No.96410 (2021)

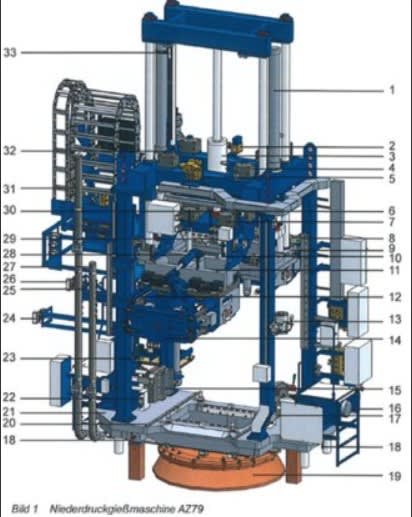

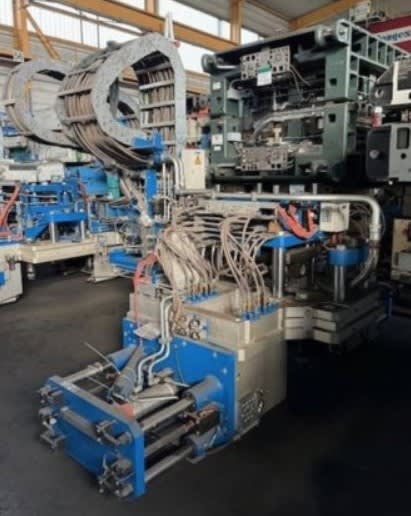

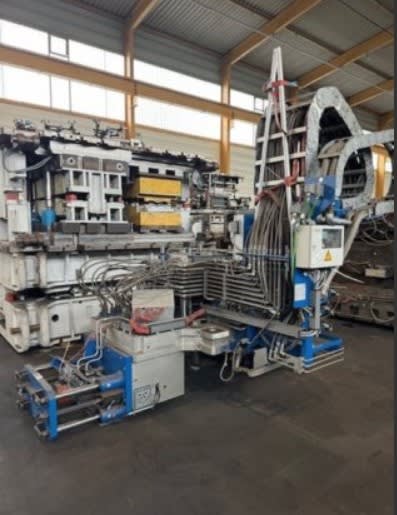

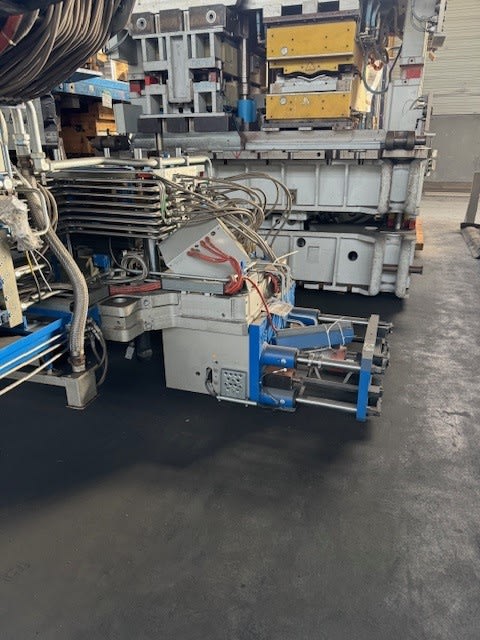

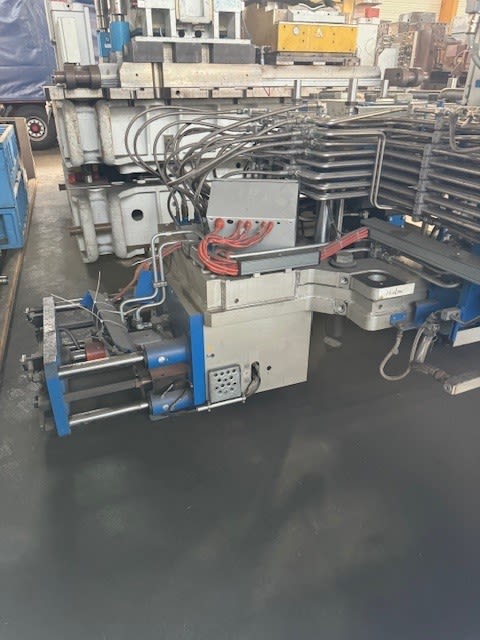

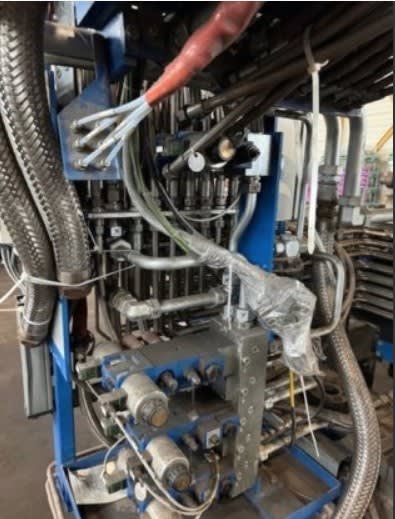

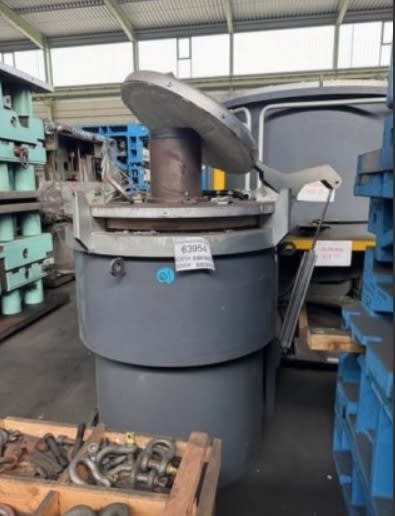

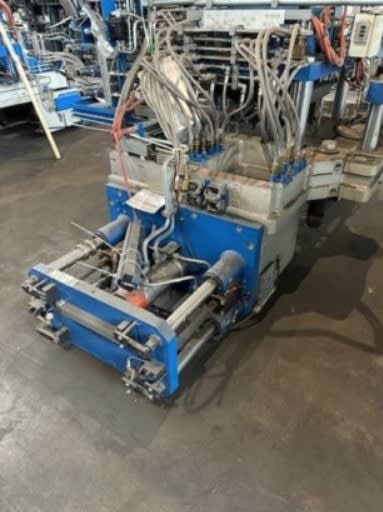

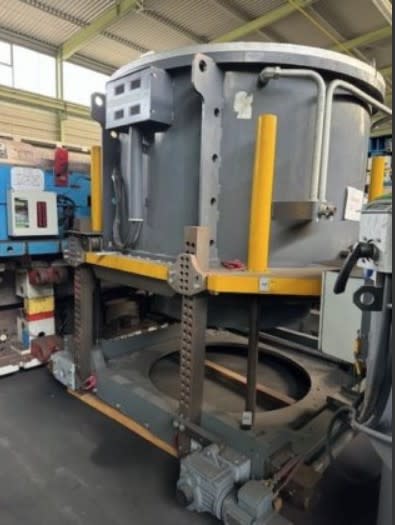

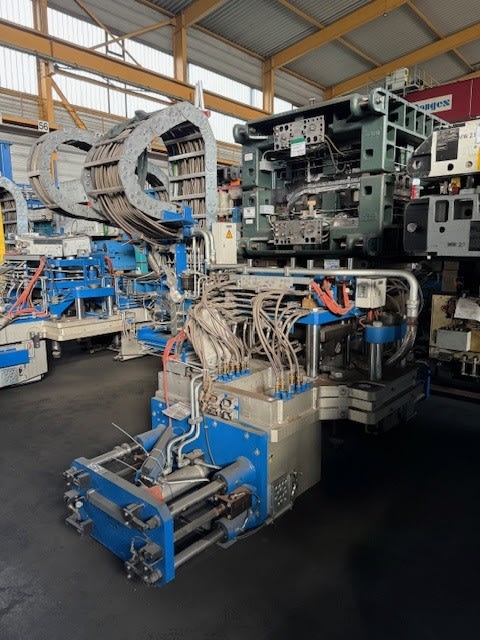

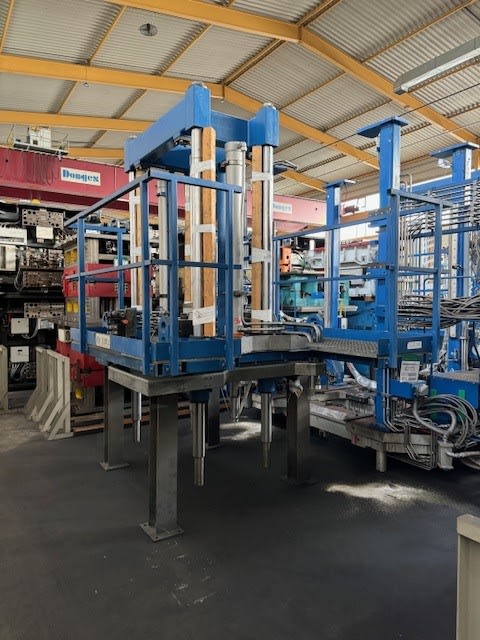

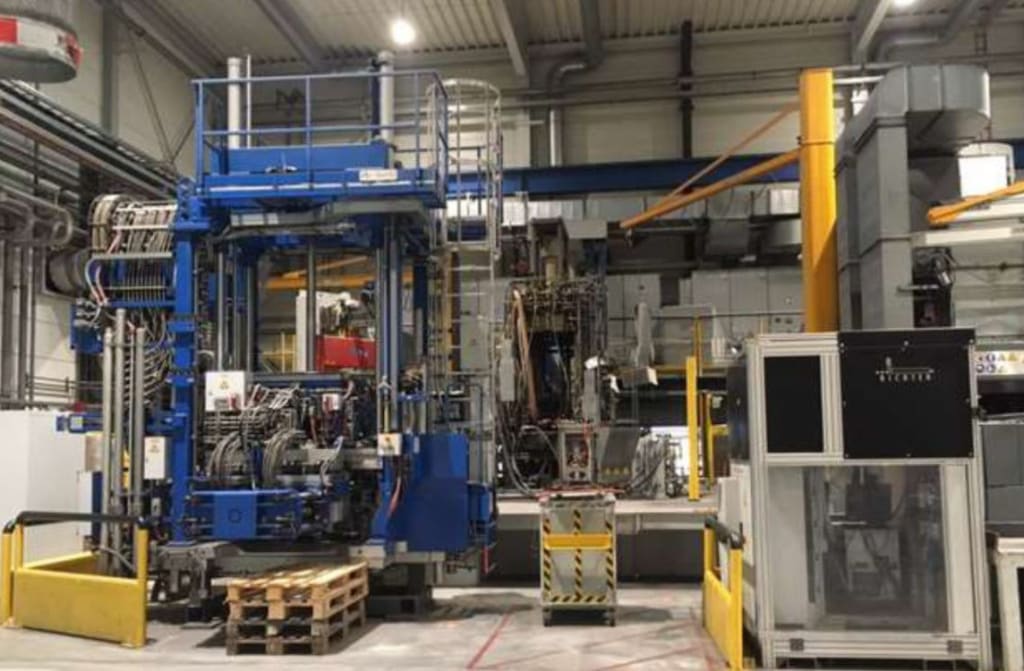

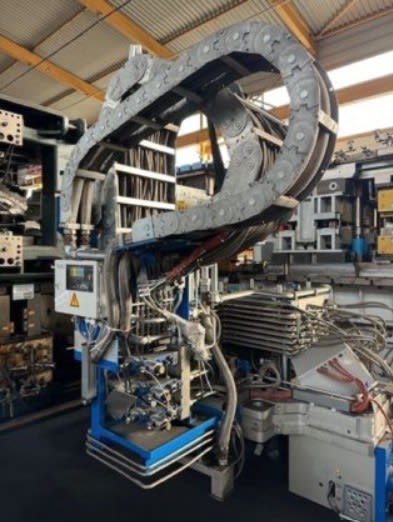

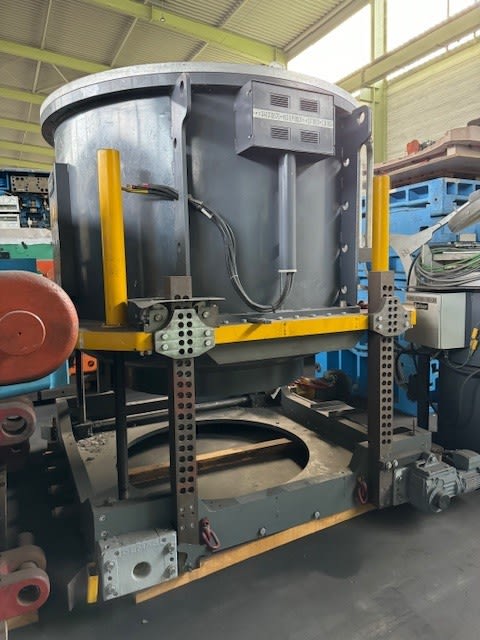

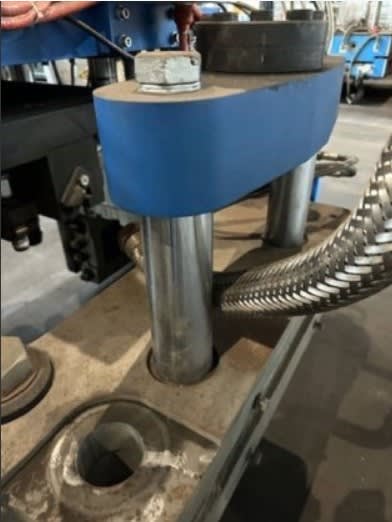

High-Specification Kurtz AZ79.20 Low-Pressure Die Casting Machine, Manufactured In 2015, Designed For Precision Aluminium Casting Applications. This Industrial-Grade Unit Features A Robust Hydraulic Closing System, Integrated Mould Cooling Circuits, And Automated Part Removal System, Making It Suitable For High-Reliability Production Environments. German-Built By Kurtz Gmbh, A Globally Recognised Manufacturer Of Die Casting Systems. The System Was Used To Manufacture 4-Cylinder Car Crankcases. By Simply Changing The Casting Molds, The System Can Be Quickly Converted To Produce Any Component Manufactured Using The Low-Pressure Casting Process. This Means It Can Produce Pump Housings, Oil Pans, Cylinder Heads, Cam Carriers, Transmission Housings, And Much More. Travel Movements (Section 2.4) Hydraulic Movements: Closing Unit (Upper Platen): Stroke: Max. 1,400mm. Maximum Opening: 2,400 Mm. Minimum Opening 600mm. Ejector Stroke 50mm. Part Removal: Stroke 1,365mm. Swivel: 180°. Drop Protection Ratio-Clamp RCS 100: Piston Rod Ø 100 Mm. Max Axial Load: 160 Kn. Max Unlocking Pressure: 160 Bar. Min Unlocking Pressure: 65 Bar. Hydraulic Cylinders. Closing Cylinder: 2 × Ø125/60 – 1,400 Mm Stroke. Ejector Cylinder: 4 × Ø100/63 – 50 Mm Stroke. Side Core Pull: 2 × Ø125/60 – 250 Mm Stroke. Front Core Pull: 2 × Ø160/80 – 270 Mm Stroke. Hydraulic Motors: Removal Lift/Swivel Motor: HSE 4.0.0 / SM4.80 – 180° (Manufacturer: Eckart) Pneumatic Movements: Removal Arm Lift: Max Stroke 400 Mm. Pneumatic Cylinder: DNC Ø63-400-PPV-A (Festo). Cooling System: 24 Water Cooling Circuits. 22 Air Cooling Circuits. Total Return Manifold Ø 88.9 Mm. Compressed Air Requirement: 6 Bar. Air Connection: ½". With A Movable And Height-Adjustable BALZER Pression Furnace And A BALZER Holding Furnace. S/No.FM1000063 (2015)
