Late Model 2024 Mazak INTEGREX J-200S 5-Axis Multi-Tasking CNC Lathe

Starts: 14 October 2026 at 13:00 BST
Ends: 17 November 2026 at 15:00 GMT
Offers encouraged on this late model machine with only 2,127 power on hours! Machine has been moved to Apex Auctions storage for ease of collection. A loading fee will be added to buyer's invoice of £100 + VAT. Please See the Sale Information Section for Any Additional Fees That May Be Applicable Upon Purchasing an Item. NOTE: Vendor to Approve All Closing Bids Prior to Apex Final Invoicing.
Register for auctionEssential Information
Share:
Showing 1 of 1 lots
  • 0_z3to0l
    1_bdeed612-6456-42dc-b0da-52c9632c82cc
    2_7ec8c868-dd25-4170-9ef9-0493c90be1ed
    3_d4e9727f-69da-4a15-be95-71951b43bb3e
    IMG_2262_u1wdie
    IMG_2263_vh0ks9
    IMG_2264_pokds8
    IMG_2265_z5lfmn
    IMG_2266_6c51a304-5d8f-418e-8e5e-22647e0694b6
    IMG_2266_bde268e4-7598-45dc-aeb0-e92a349d9452
    IMG_2266_blsref
    IMG_2267_awobtw
    IMG_2268_z7dtye
    IMG_2269_yn6oam
    IMG_2270_d7ljg1
    IMG_2271_ac6rqi
    IMG_2272_vnjfqy
    IMG_2273_l6kjie
    IMG_2274_xmmemo
    IMG_2275_nxvs2i
    IMG_2276_lozezi
    IMG_2277_tgcgrp
    IMG_2278_ix1zld
    IMG_2279_lzggq2
    IMG_2280_c3pb2f
    IMG_2281_dsjutw
    IMG_2282_hlmmsl
    IMG_2283_gm7pmm
    IMG_2284_yfb67q
    IMG_2285_z0ezjk
    IMG_2286_g6cr8d
    IMG_2287_vkus9d
    IMG_2288_fqzlrc
    IMG_2289_w8pxgo
    IMG_2290_zvim6x
    IMG_2291_ybdijj
    IMG_2292_hznihd
    IMG_2293_w15ypx
    IMG_2294_xkoe1i
    IMG_2295_wjyjl6
    IMG_2296_mycwsy
    IMG_2297_bae18k
    IMG_2298_rgecpi
    IMG_2299_dupgxg
    IMG_2300_fpahjg
    IMG_2301_tvq57s
    IMG_2302_k0ks6f
    IMG_2303_wfiznq
    IMG_2304_r8wq74
    IMG_2306_lgpwic
    IMG_2307_emixer
    IMG_2308_dyd2cm
    IMG_2309_nlfj05
    img_2266_c30f7d2a-65f2-4f5b-9be8-b67ed1d62ecc
    site
    LOT 1

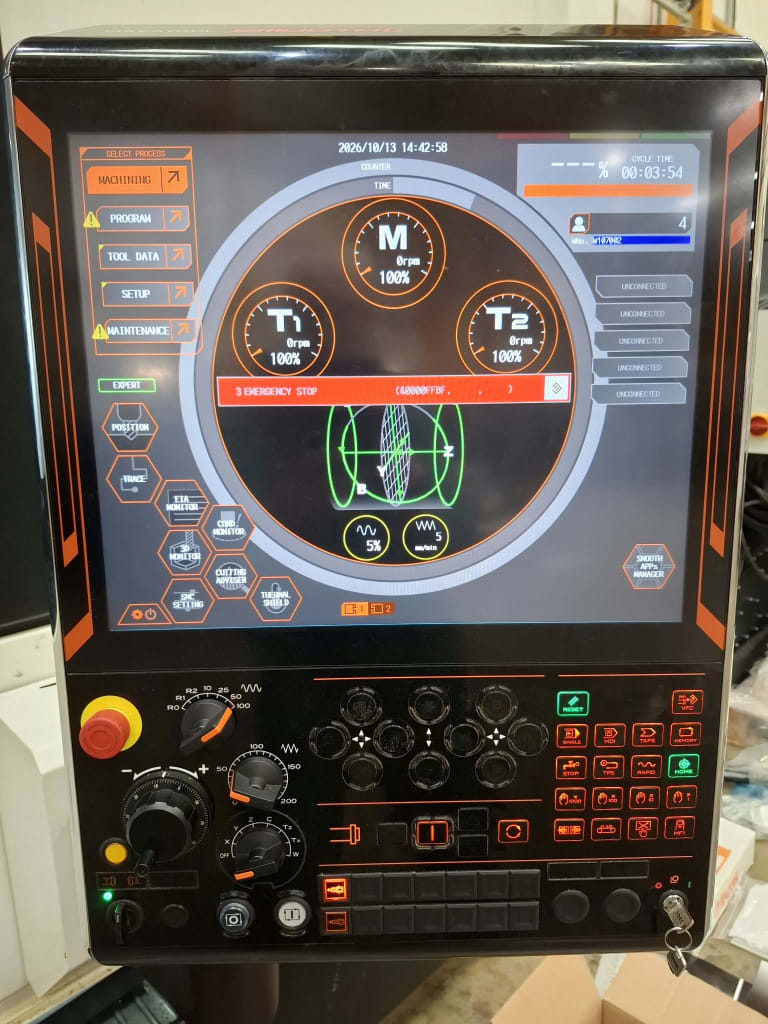

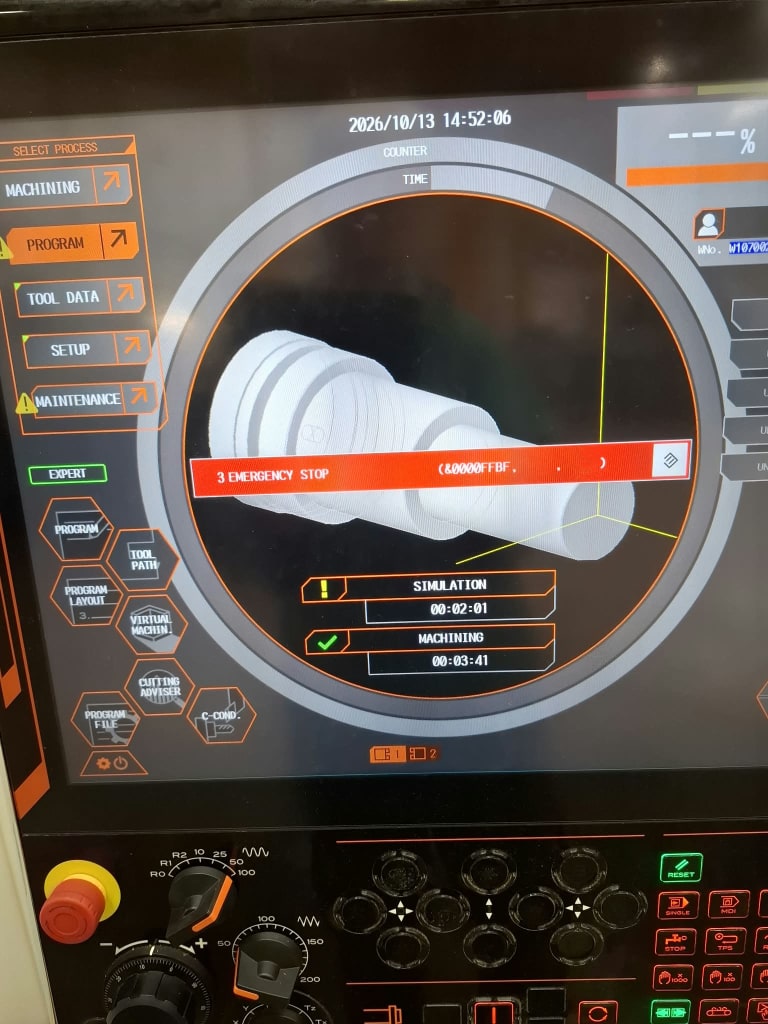

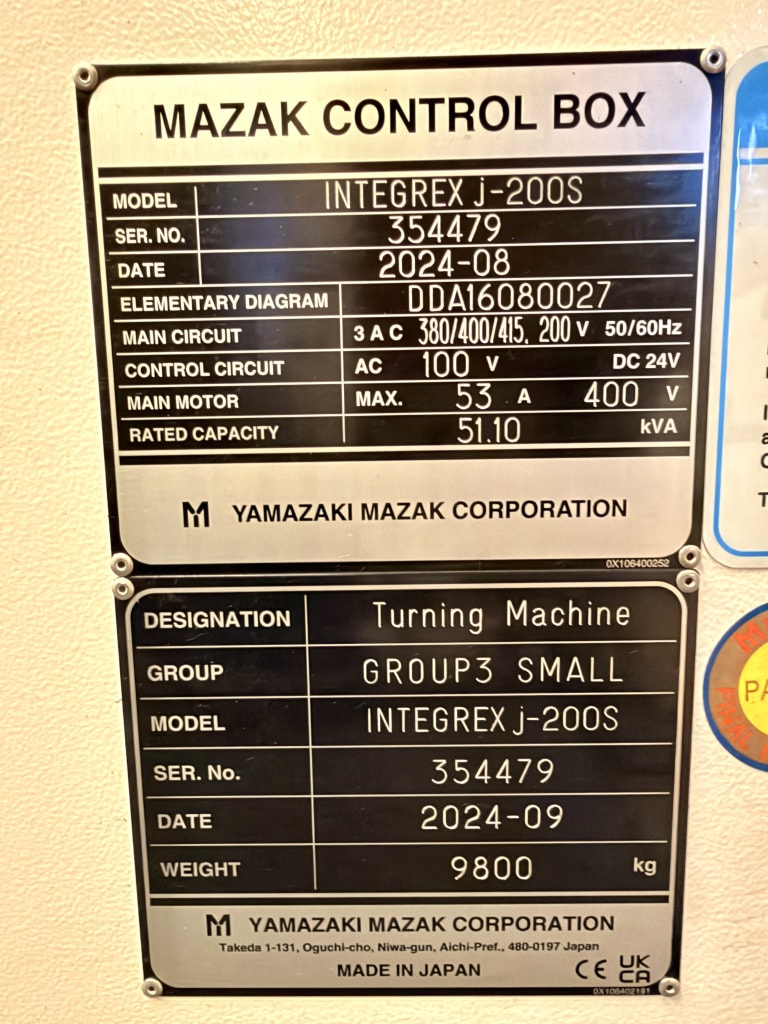

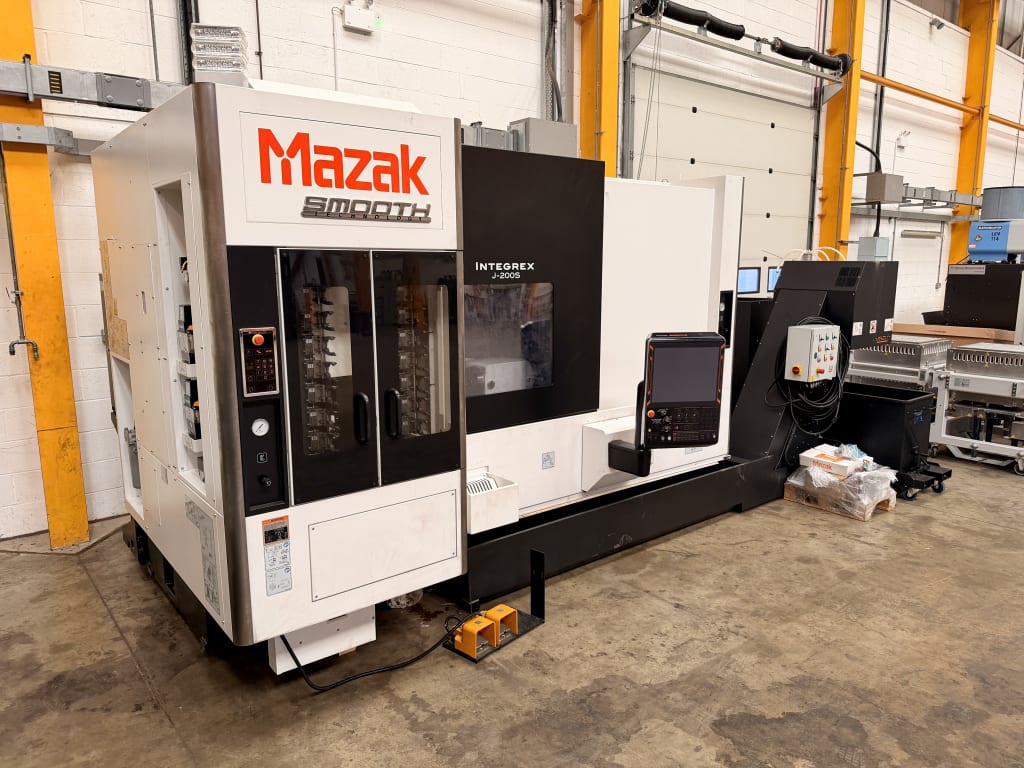

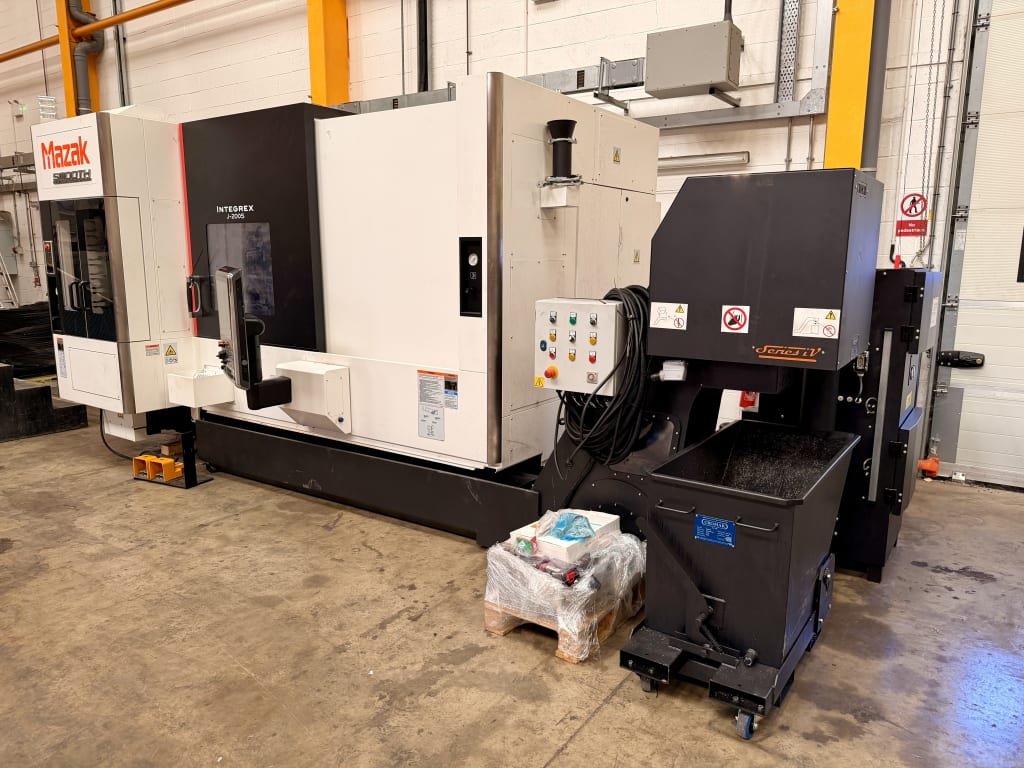

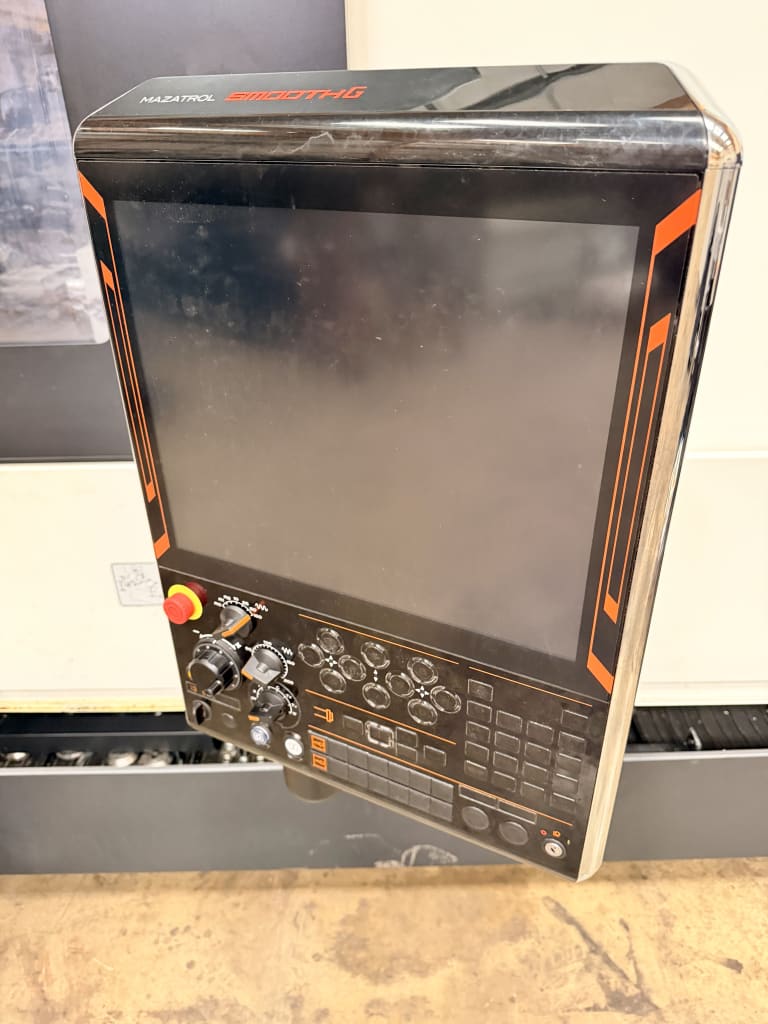

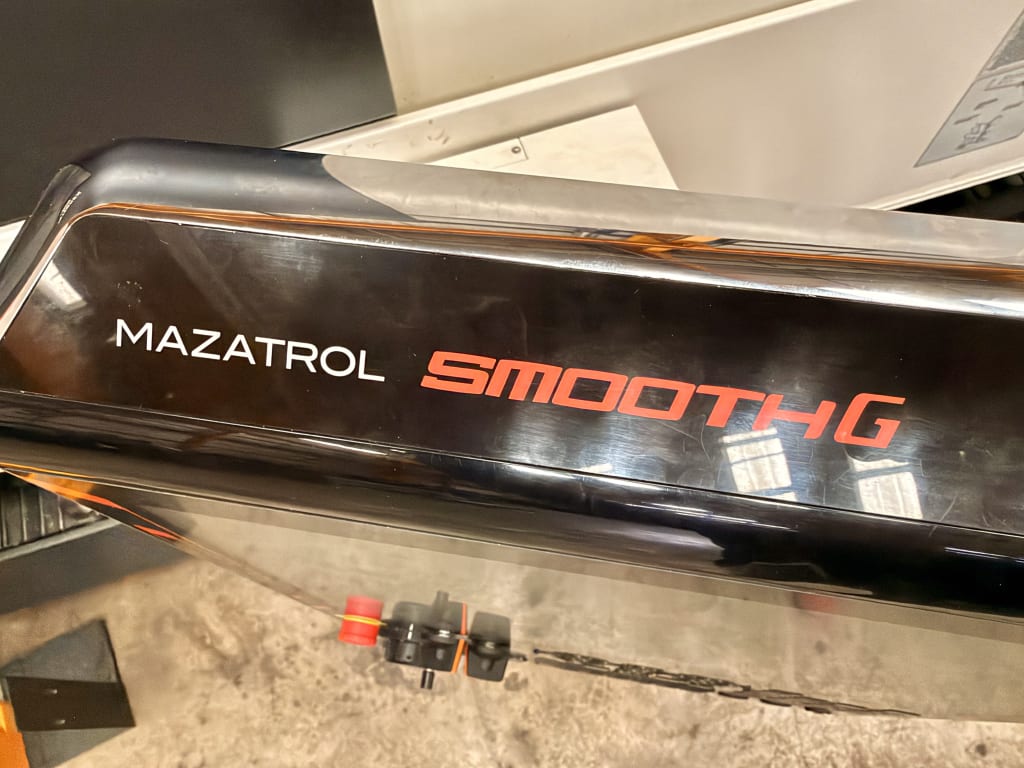

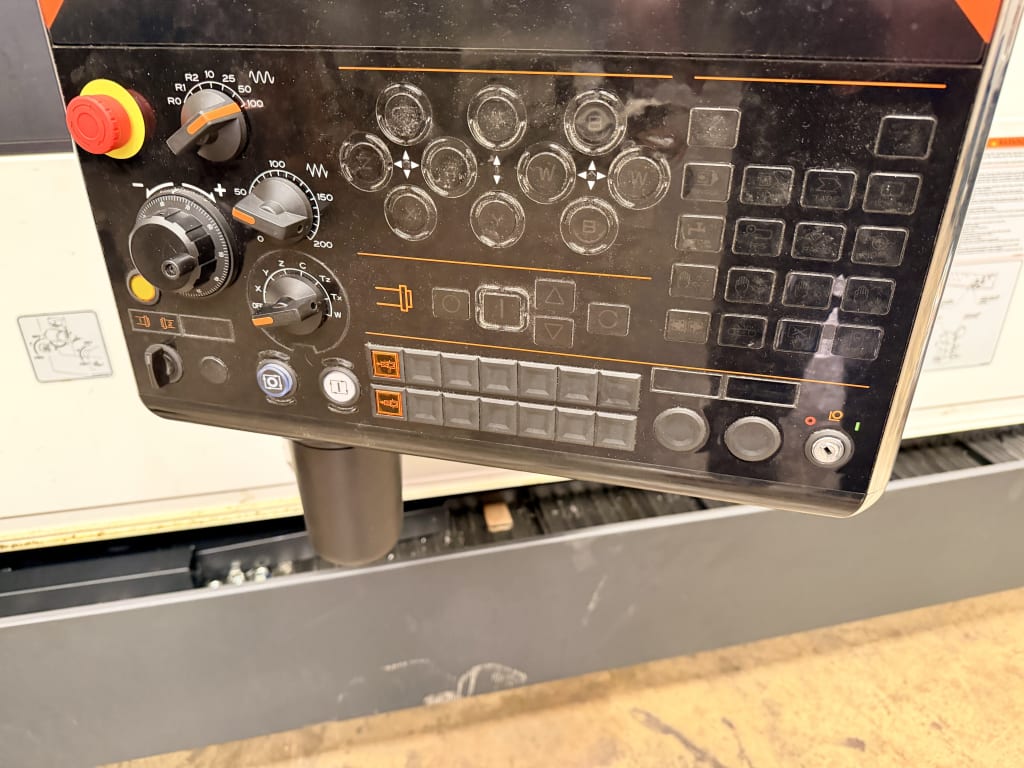

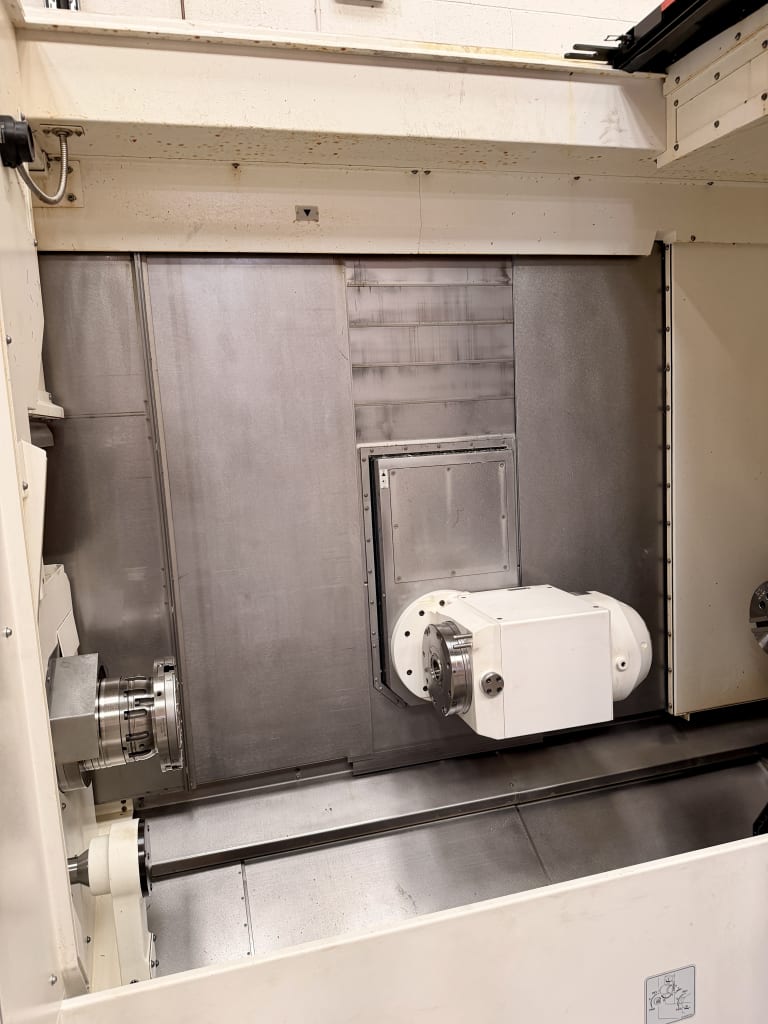

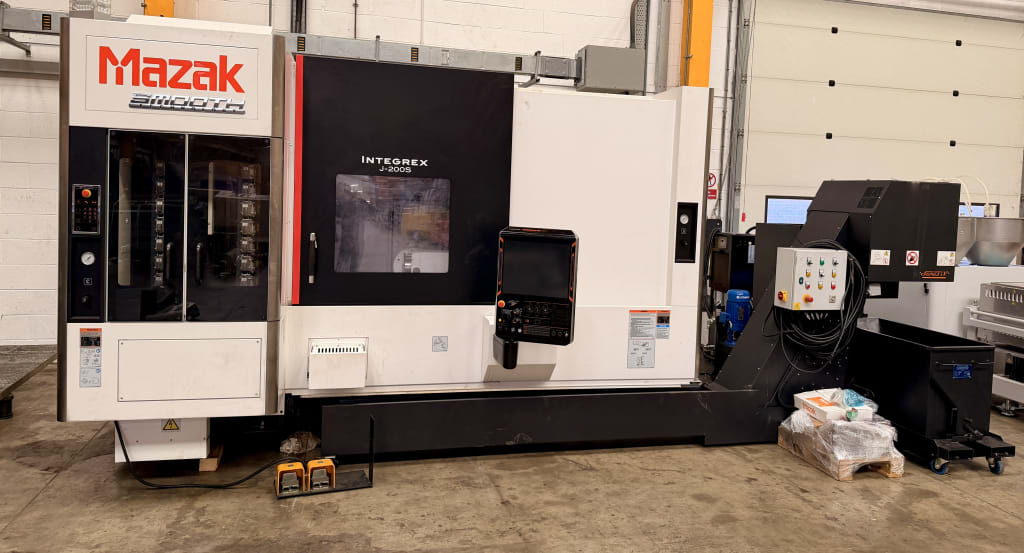

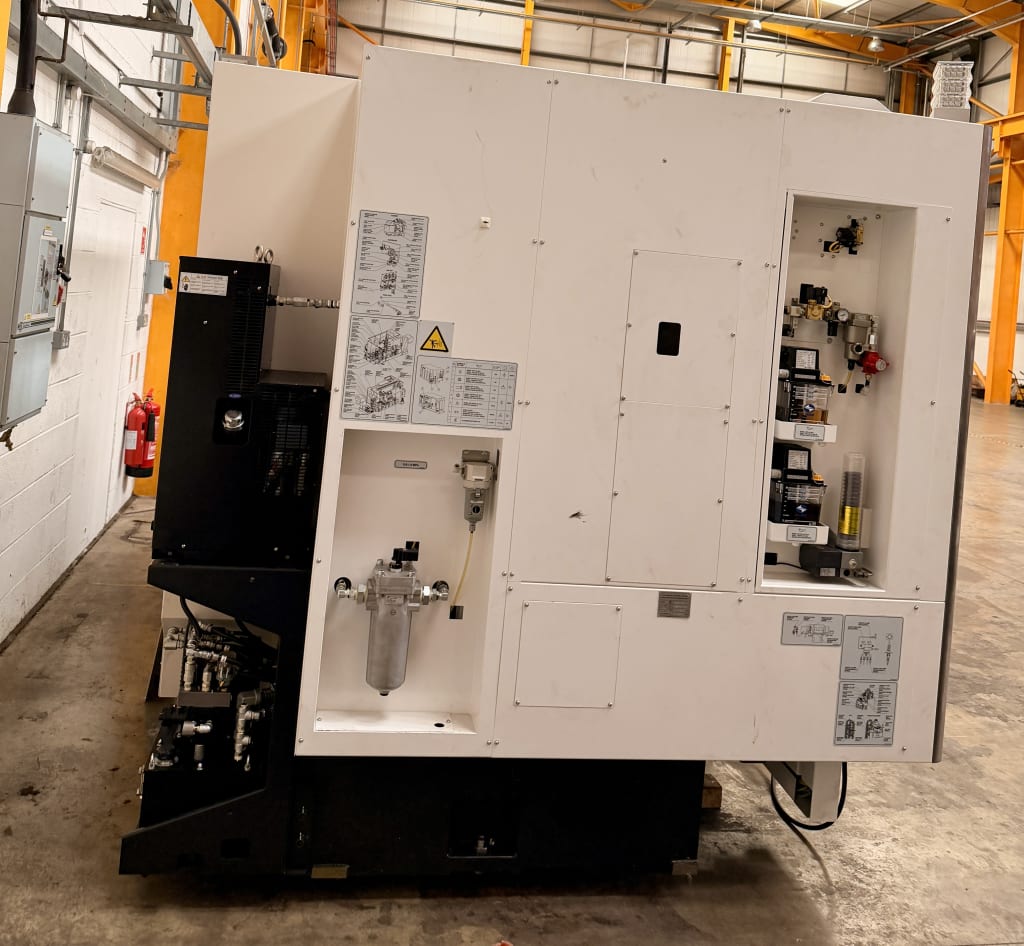

    2024 Mazak Integrex J-200S 5-Axis Multi-Tasking CNC Lathe With Mazatrol Smooth G Control

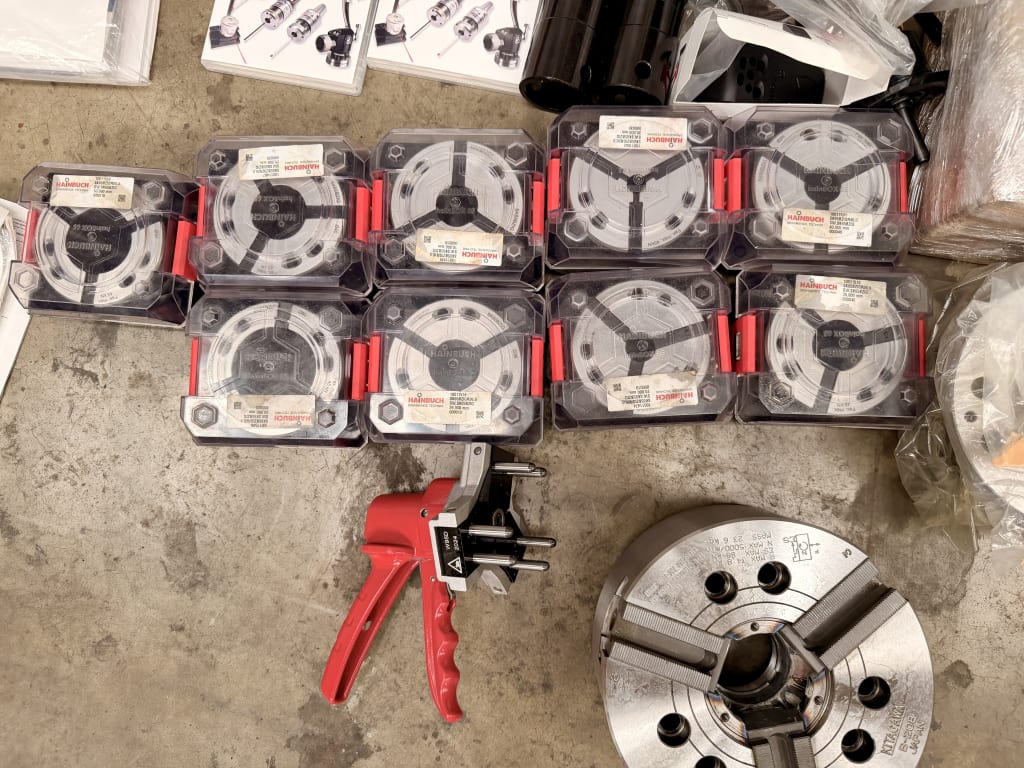

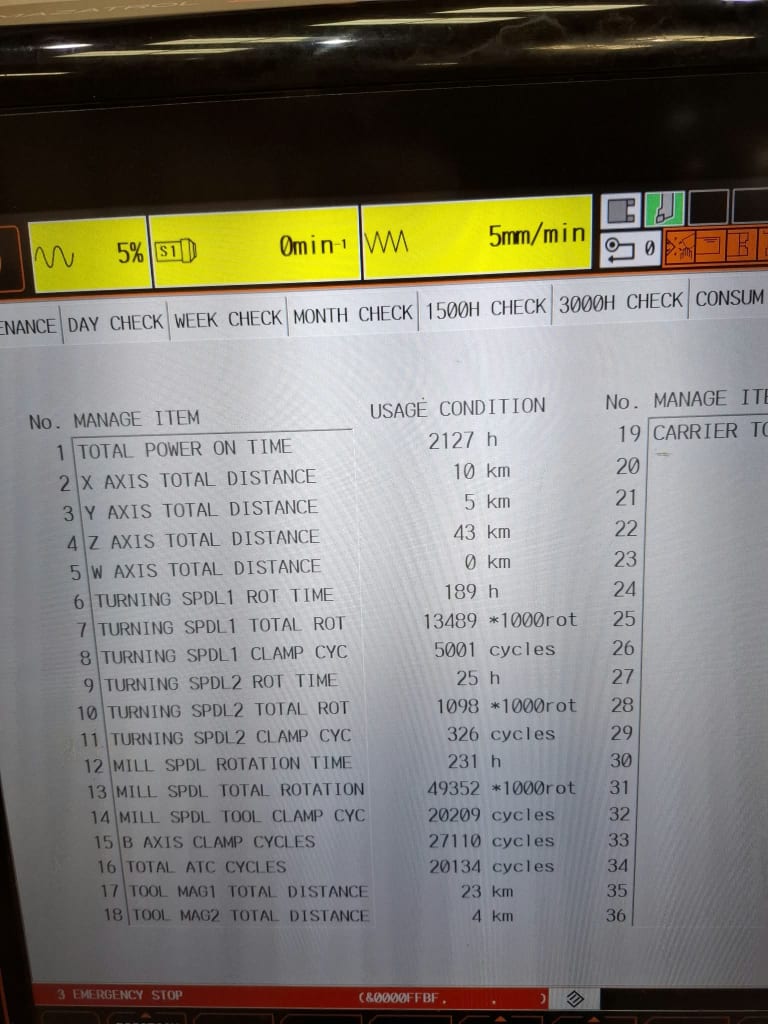

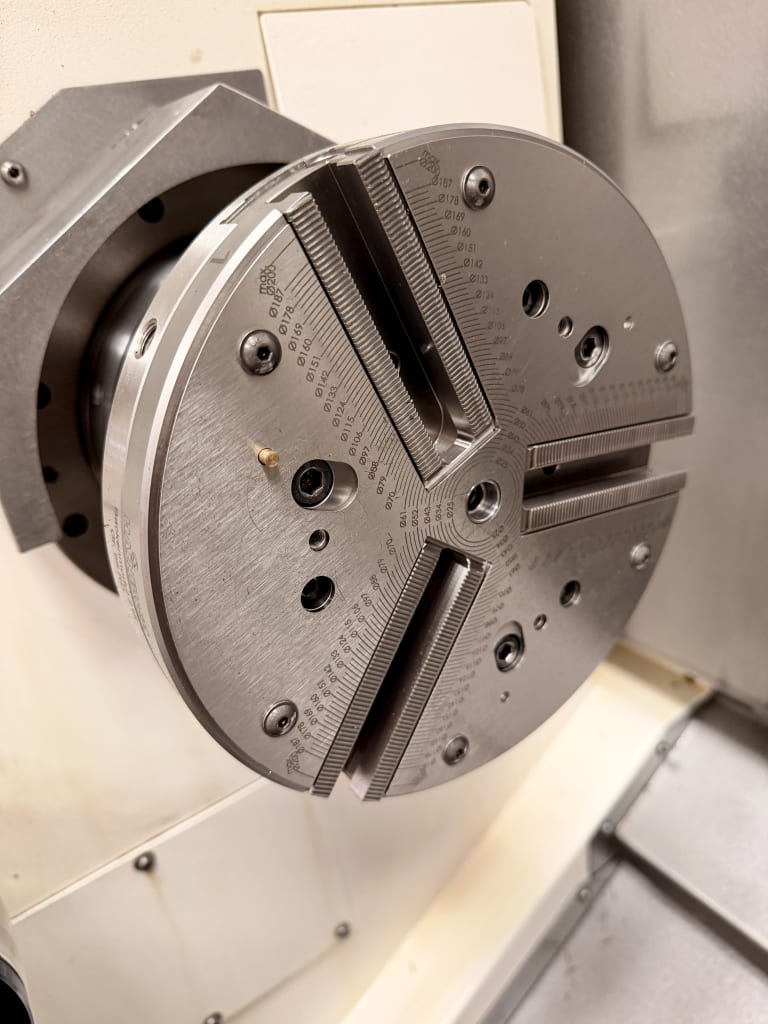

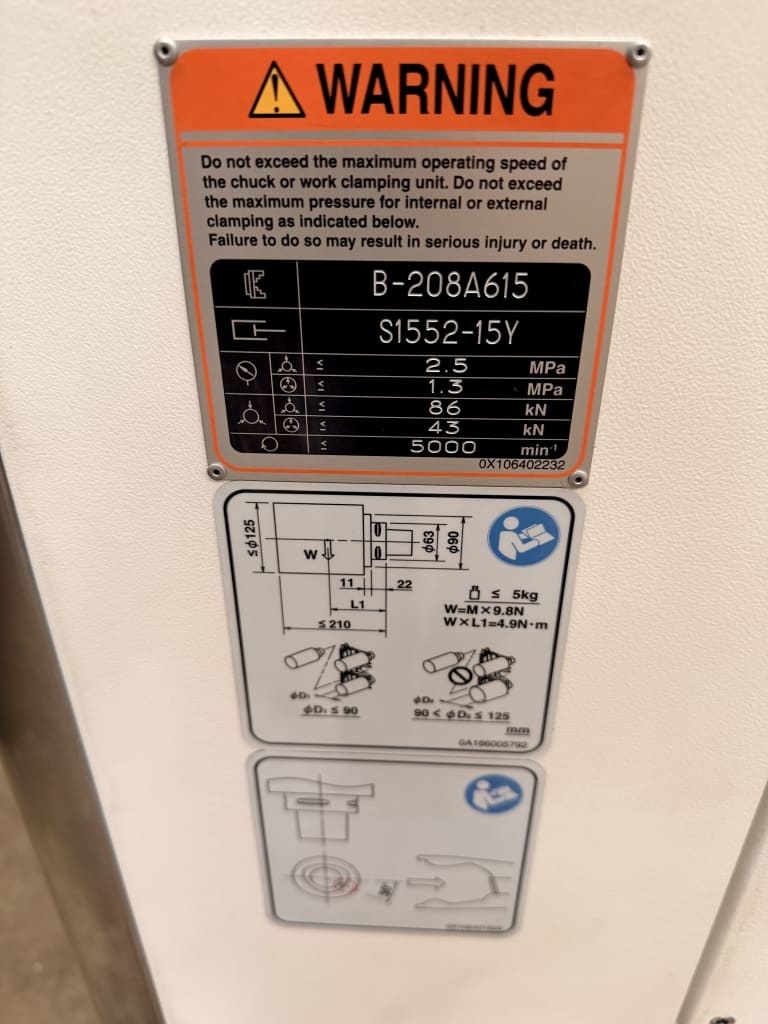

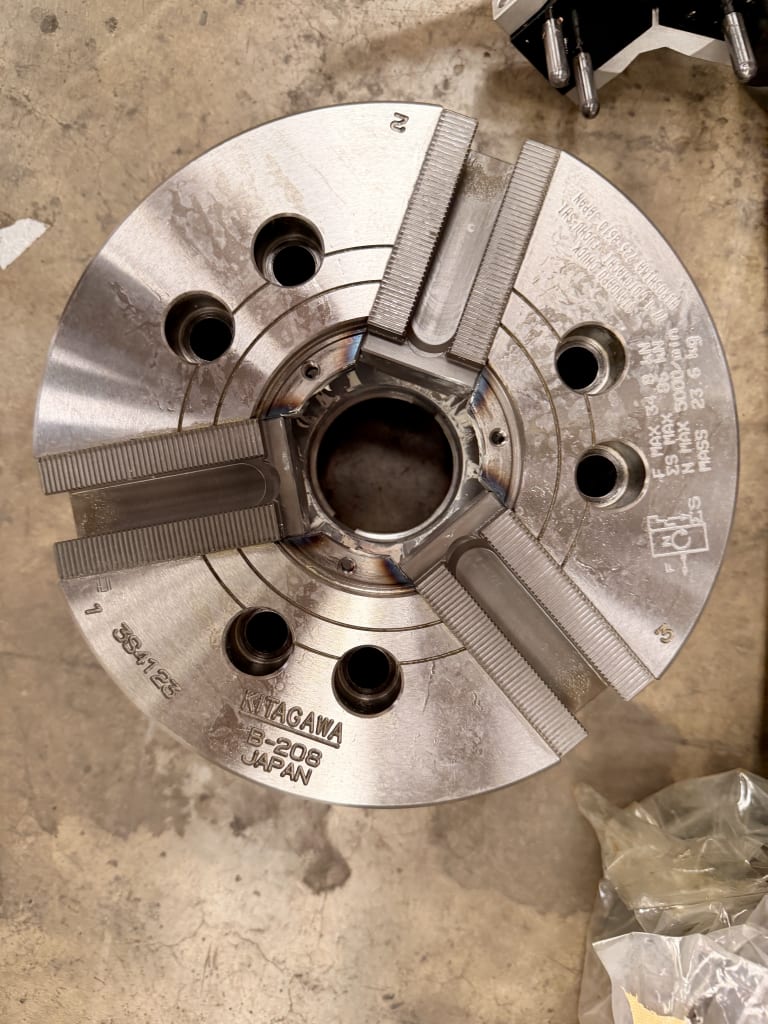

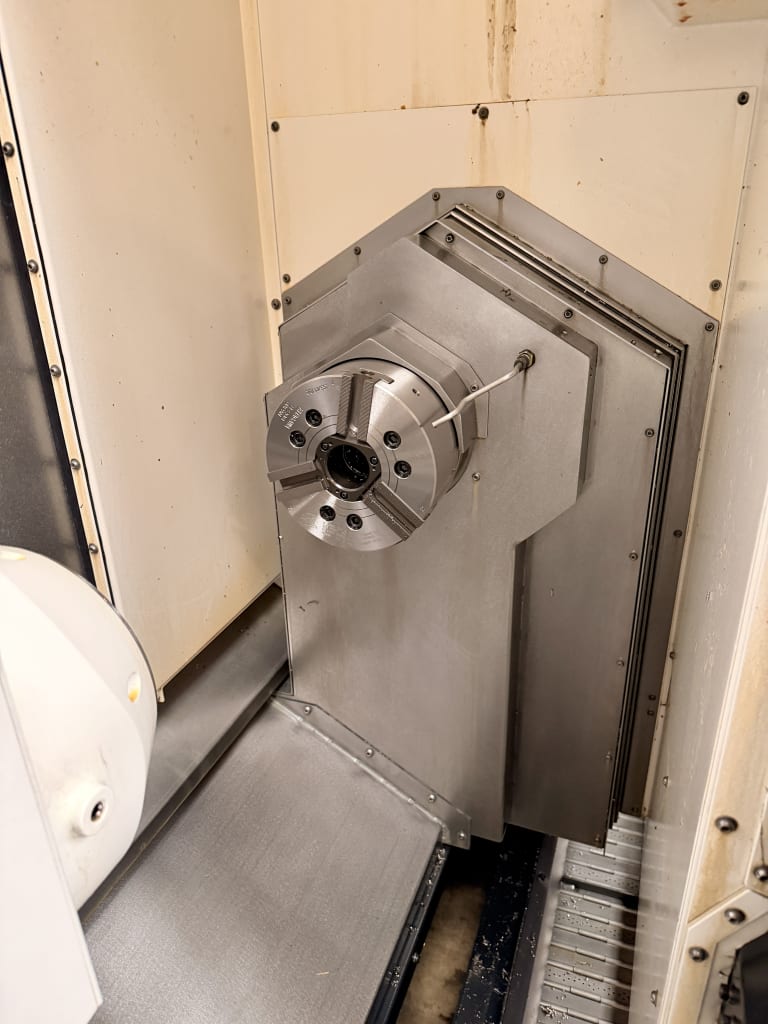

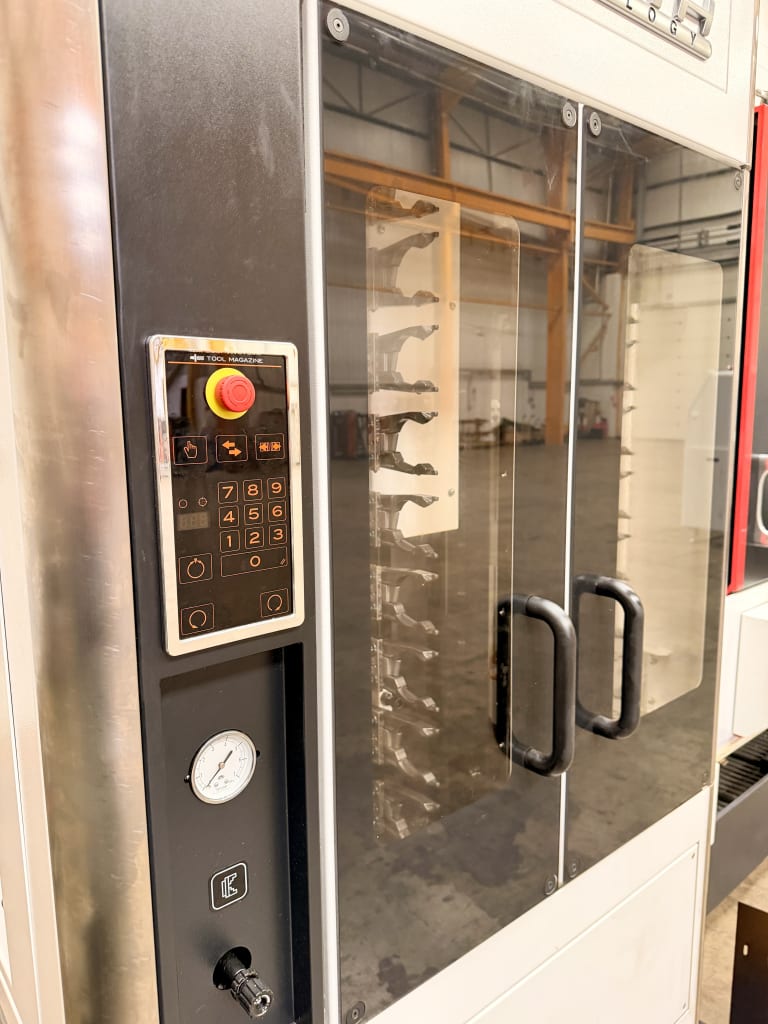

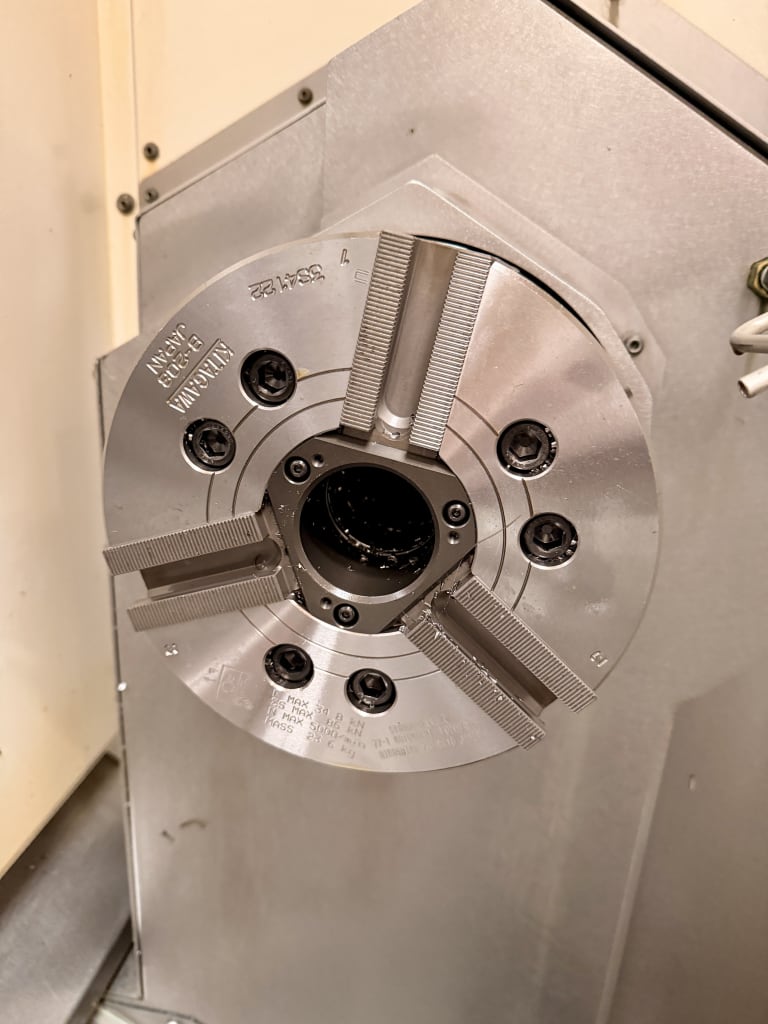

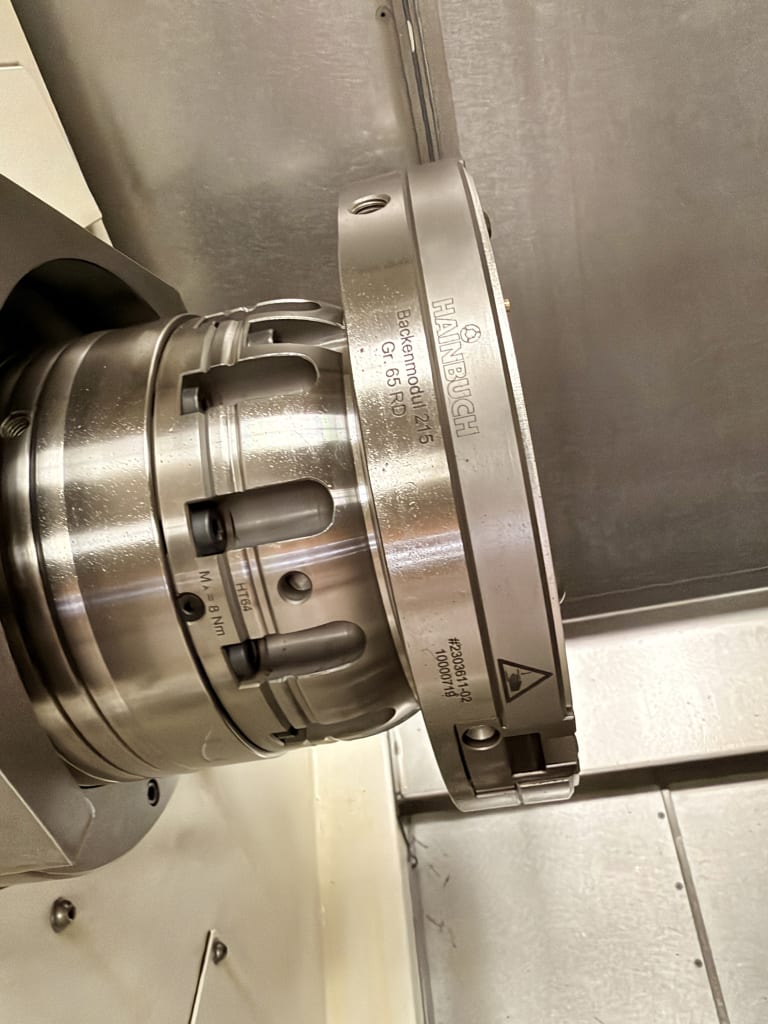

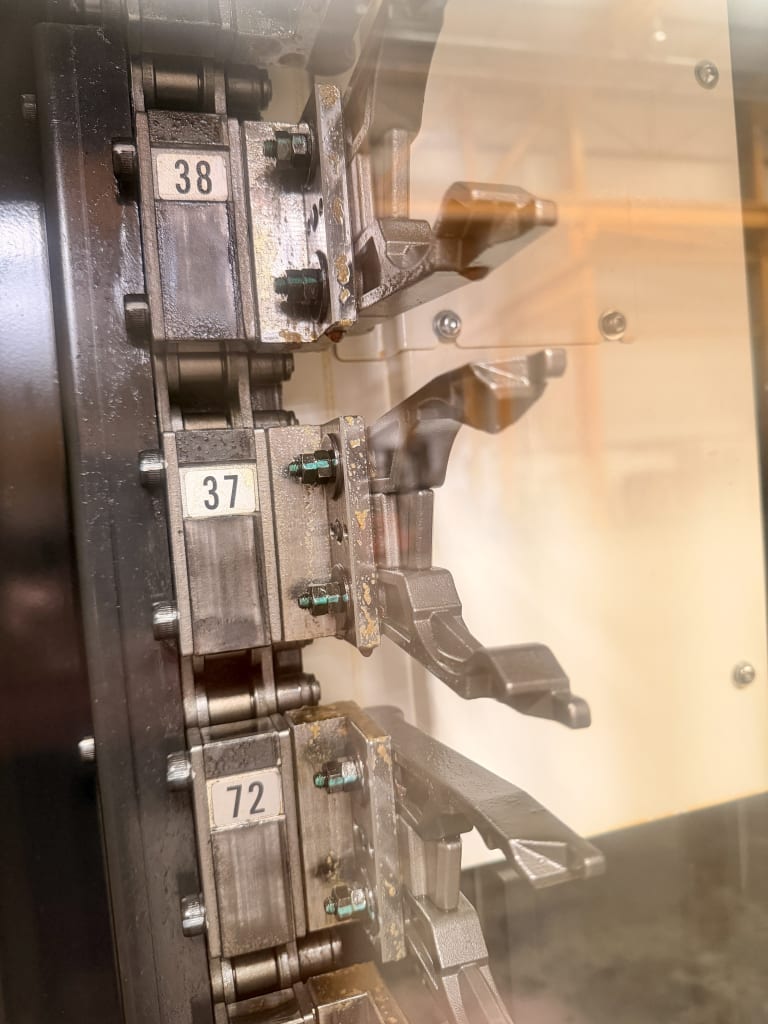

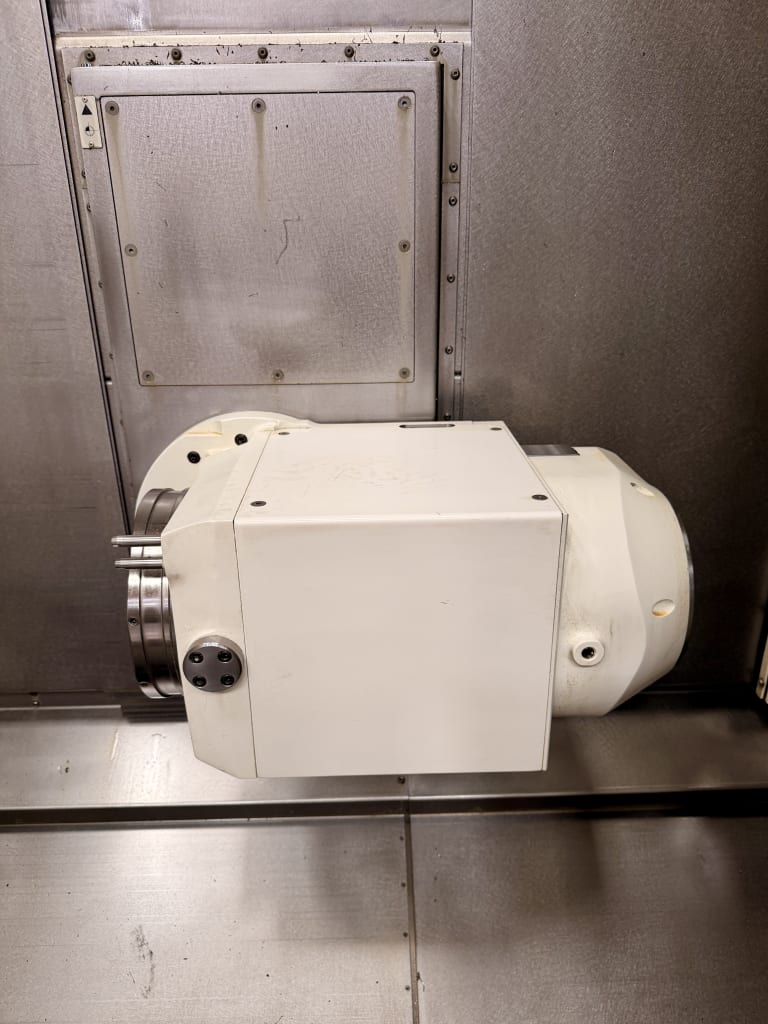

    Main Spindle Hainbuch Ø215mm 3 Jaw Power Chuck, Sub Spindle Kitagawa B-208 3 Jaw Ø210mm Power Chuck. Maximum Swing Ø530mm. Maximum Swing Over Cross Slide Ø530mm. Maximum Machining Ø500mm. Maximum Bar Working Capacity Main Spindle Ø65mm, Sub Spindle Ø51mm. Maximum Machining Length 910mm. Maximum Support Weight Main Spindle Chuck Work 200kg, Maximum Support Weight Sub Spindle Chuck Work 200kg. Axis Travel 'X'=450mm, 'Z'=1,119mm, 'Y'=200mm, ,W,=1,436mm, 'B'=–30° To 210° (5° Increment'), C'=0.0001° Increment. Rapid Traverse 'X'=40m/min, 'Z'=40m/min, 'Y'=40m/min, 'W'=30m/min,C'=555rpm. Main Spindle Speed Range 35-5,000rpm (11kW Motor). Main Spindle Nose JIS A2-6”. Spindle Bore Ø76mm, Sub Spindle Speed Range 35-5,000rpm (11kW Motor). Main Spindle Nose JIS A2-5". Maximum Milling Spindle Speed 12,000rpm (7.5kW Motor). 72 Position ATC. Spindle Nose Capto C6. Turning Tool Shank 25mm², Boring Bar Ø40mm, Maximum Tool Ø125mm, Maximum Tool Length 210mm. Power Requirement 35.34kVA. Power On Hours 2,127. S/No.354479 (2024). NOTE: A loading fee will be added to buyer's invoice of £100 + VAT.
    View Item

Essential Information

General Information

Auction Dates
Starts: 14 October 2026 at 13:00 BST
Ends: 17 November 2026 at 15:00 GMT
Site Address
Apex Auctions Centre
Catesby Street
Kettering
NN16 8XN
United Kingdom
Viewing Days
By Appointment Only
Viewings strictly by appointment only – Please contact Apex to make an appointment.

Fees & Payment

Currency
GBP
Buyers Premium
18% or as specified on individual items
Payment

General payment information

  • Payment is due immediately on receipt of invoice.
  • All payments must be made in the currency on the invoice issued.
  • Accepted forms of payment are bank transfer ONLY. We do NOT accept payment by card, cash or cheque.

Goods

Clearance days
30 November 2026 at 08:00 GMT - 30 November 2026 at 16:00 GMT
Collections strictly by appointment only. A loading fee will be added to buyer's invoice of £100 + VAT.
General Collection Information

Collection

  • Buyers are fully responsible for removal of items plus all shipping and rigging charges.
  • Items are only available to collect once the transfered funds have cleared, and a collection appointment has been booked.
  • Buyers or third party movers must present an invoice to the on-site personnel when removing their items.
  • Buyers must complete the removal of items within the clearance deadline. Normal removal hours are Monday to Friday, from 9am to 4pm (local time) unless otherwise stated.
  • Contact and removal information will be emailed at the time invoices are issued.
